Materials and Hardware
What is Required from T8CCR 3314?
- Accident prevention signs, tags, padlocks, seals or other similarly effective means which may be required for cleaning, servicing, adjusting, repair work or setting-up operations must be provided.
- Signs, tags, padlocks, and seals must have means by which they can be readily secured to the controls. Tagout device attachment means shall be of a non-reusable type, attachable by hand, self-locking, and non-releasable with a minimum unlocking strength of no less than 50 pounds.
Examples of lockout devices
![Lockout/tagout devices - storage board](images/mat_loto_dev.jpg)

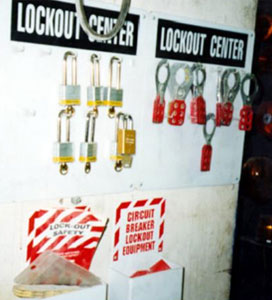

Lockout/tagout devices - storage board

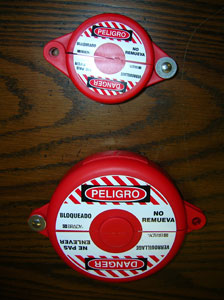

![Gate valve lockout device](images/mat_gat_val.jpg)
Gate valve lockout device

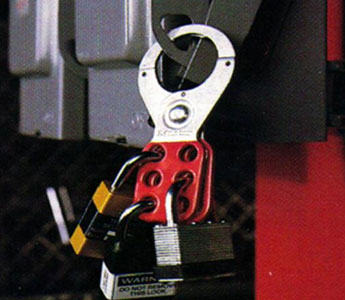

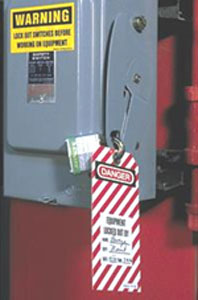

Locks and tags for electrical panels
![Pneumatic energy isolation device](images/mat_air_iso.jpg)

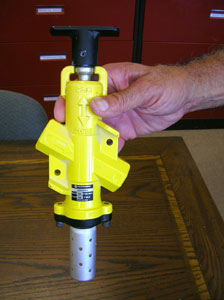

Pneumatic energy isolation device
![Padlock rack](images/mat_pad_rack.jpg)

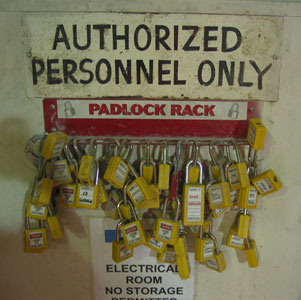

Padlock rack

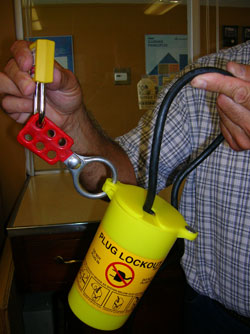

![Cord and plug lockout device](images/requirepic2.jpg)
Cord and plug lockout device
![Lockout/tagout hardware - lock, tag, and hasp](images/mat_loto_har.jpg)

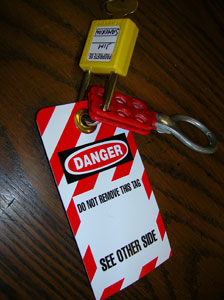

Lockout/tagout hardware - lock, tag, and hasp
![Equipment switch lock and tag](images/mat_equ_swi.jpg)

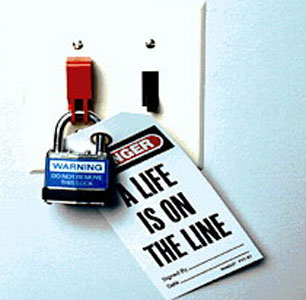

Equipment switch lock and tag
![Breaker switch lock and tag](images/mat_bre_swi.jpg)

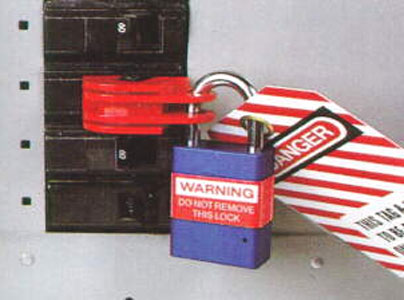

Breaker switch lock and tag
![Plug lock and tag](images/mat_plu_loto.jpg)

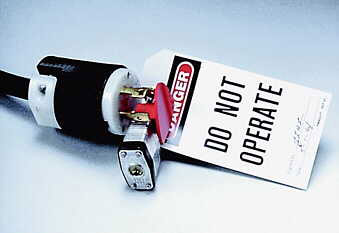

Plug lock and tag

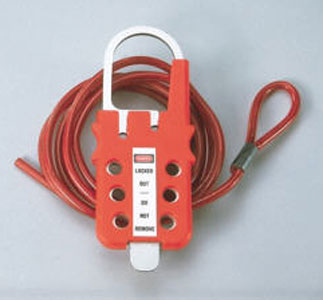

![Gang lockout device](images/mat_gan_loto.jpg)
Gang lockout device
Plug lockout device
