§5049. Defective Hoist or Sling Hooks and Rings.


(a) Deformed or defective hooks or rings shall not be used.

(b) Deformed hooks or rings shall be replaced or repaired and reshaped under proper metallurgical control and proof tested.

(c) Annealing or normalizing shall be done only in accordance with the chain manufacturer's specifications.

(d) Hooks and shackles shall be used in accordance with manufacturer's recommendations.

(e) All hooks for which no applicable manufacturer's recommendations are available shall be tested to twice the intended safe working load before they are initially put into use. The employer shall maintain and keep readily available a certification record which includes the date of the test, the signature of the person who performed the test, and an identifier of the hook which was tested.

(f) Special custom design grabs, hooks, clamps, or other lifting accessories for such units as modular panels, prefabricated structures and similar materials, shall be marked to indicate the safe working loads and shall be proof-tested to 125 percent of the rated load prior to use.

(g) Shackles. Employers must ensure that shackles:

(1) Have permanently affixed and legible identification markings as prescribed by the manufacturer that indicate the recommended safe working load;

(2) Not be loaded in excess of its recommended safe working load as prescribed on the identification markings by the manufacturer; and

(3) Not be used without affixed and legible identification markings as required by subsection (g)(1) of this section.

Note: Authority cited: Section 142.3, Labor Code. Reference: Section 142.3, Labor Code.

HISTORY

1.New subsections (d) and (e) filed 5-1-87; operative 5-31-87 (Register 87, No. 19).

2. Relettering of former subsection (e) to subsection (f), and new subsection (e) filed 3-5-90; operative 4-4-90 (Register 90, No. 12).

3. Change without regulatory effect providing proper placement for History 2 filed 4-13-2004 pursuant to section 100, title 1, California Code of Regulations (Register 2004, No. 16).

4. New subsections (g)-(g)(3) filed 1-18-2012; operative 1-18-2012 pursuant to Labor Code section 142.3(a)(4)(C). Submitted to OAL for printing only pursuant to Labor Code section 142.3(a)(3) (Register 2012, No. 3).



Figure S-1

Major Components of a Quadruple Sling




 HISTORY

1. New NOTE filed 5-1-87; operative 5-31-87 (Register 87, No. 19).

2. Change without regulatory effect providing more legible illustration for
Figure S-1 filed 3-2-2009 pursuant to
section 100, title 1, California Codeof Regulations (Register 2009, No. 10).




Figure S-2





    Note: Authority cited: Section 142.3, Labor Code. Reference: Section 142.3, Labor Code.


 HISTORY

1. New Note filed 5-1-87; operative 5-31-87 (Register 87, No. 19).

2. Change without regulatory effect providing more legible illustration for
Figure S-2 filed 3-2-2009 pursuant to
section 100, title 1, California Codeof Regulations (Register 2009, No. 10).


Figure S-3





    Note: Authority cited: Section 142.3, Labor Code. Reference: Section 142.3, Labor Code.


 HISTORY

1. New Note filed 5-1-87; operative 5-31-87 (Register 87, No. 19).

2. Change without regulatory effect providing more legible illustration for
Figure S-2 filed 3-2-2009 pursuant to
section 100, title 1, California Codeof Regulations (Register 2009, No. 10).


Figure S-4

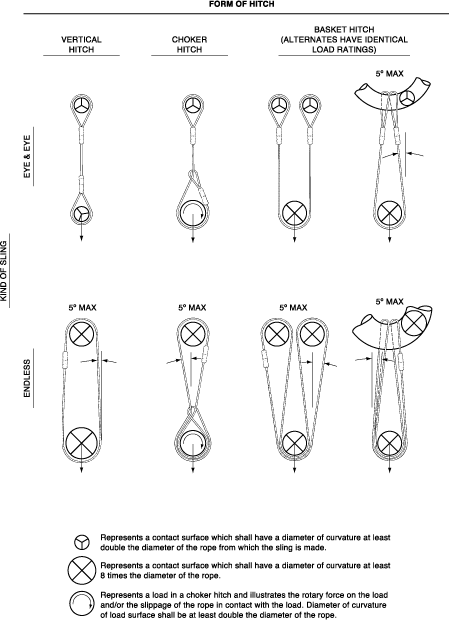

Basic Sling Configurations With Vertical Legs
NOTE: Note: Legs 5o or less from vertical may be considered vertical. For slings with legs more than 5o off vertical, the actual angle as shown, in Figure S-5, must be considered.



These symbols represent load or support surfaces in contact with the sling. For fiber rope slings, these surfaces have limitations as stated in Section 5047.

Explanation Of Symbols: Minimum Diameter Of Curvature






    Note: Authority cited: Section 142.3, Labor Code. Reference: Section 142.3, Labor Code.


 HISTORY

1. New Note filed 5-1-87; operative 5-31-87 (Register 87, No. 19).

2. Change without regulatory effect providing more legible illustration for
Figure S-4 filed 3-2-2009 pursuant to
section 100, title 1, California Codeof Regulations (Register 2009, No. 10).


Figure S-5

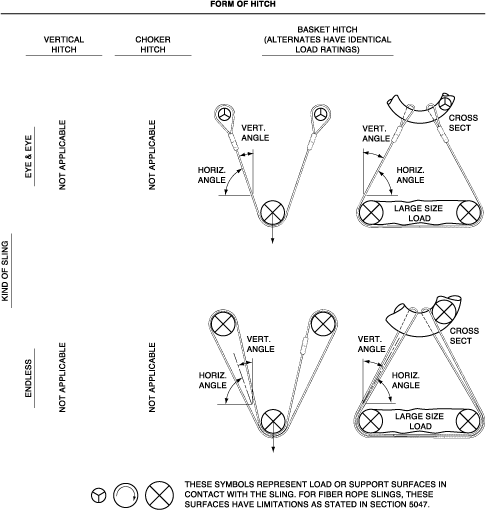

Sling Configurations With Angled Legs

Note: For vertical angles of 5o or less, refer to Figure S-4, "Basic Sling Configurations with Vertical Legs." The use of slings with vertical angles of more than 60o (horizontal angles less than 30o) is not recommended.




 HISTORY

1. Change without regulatory effect providing more legible illustration for
Figure S-5 filed 3-2-2009 pursuant to
section 100, title 1, California Codeof Regulations (Register 2009, No. 10).


Figure S-6

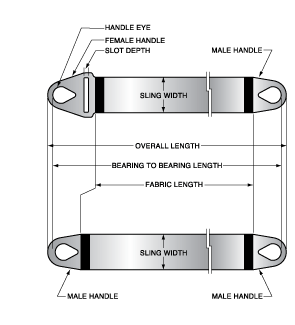

Basic Synthetic Web Sling Construction





    Note: Authority cited: Section 142.3, Labor Code. Reference: Section 142.3, Labor Code.


 HISTORY

1. New Note filed 5-1-87; operative 5-31-87 (Register 87, No. 19).

2. Change without regulatory effect providing more legible illustration for
Figure S-6 filed 3-2-2009 pursuant to
section 100, title 1, California Codeof Regulations (Register 2009, No. 10).



                  Table S-1
Rated Capacity (Working Load Limit), for Alloy Steel Chain Slings*
      Rated Capacity (Working Load Limit), Pounds
     [Horizontal angles shown in parentheses]

____________________________________________________
        |         |
        | Single  | Double sling vertical angle (1)

 Chain  | branch  |_________________________________
  size, | sling-- |         |         |

 inches | 90 deg. | 30 deg. | 45 deg. | 60 deg.
        | loading |(60 deg.)|(45 deg.)|(30 deg.)
________|_________|_________|_________|_____________
        |         |         |         |
1/4.....|   3,250 |   5,650 |   4,550 |   3,250
3/8.....|   6,600 |  11,400 |   9,300 |   6,600
1/2.....|  11,250 |  19,500 |  15,900 |  11,250
5/8.....|  16,500 |  28,500 |  23,300 |  16,500
3/4.....|  23,000 |  39,800 |  32,500 |  23,000
7/8.....|  28,750 |  49,800 |  40,600 |  28,750
1.......|  38,750 |  67,100 |  54,800 |  38,750
1 1/8...|  44,500 |  77,000 |  63,000 |  44,500
1 1/4...|  57,500 |  99,500 |  61,000 |  57,500
1 3/8...|  67,000 | 116,000 |  94,000 |  67,000
1 1/2...|  80,000 | 138,000 | 112,900 |  80,000
1 3/4...| 100,000 | 172,000 | 140,000 | 100,000
________|_________|_________|_________|_____________




 TABLE S-1. -- RATED CAPACITY (WORKING LOAD LIMIT),
                   FOR ALLOY STEEL CHAIN SLINGS
                  (CONTINUED)

      Rated Capacity (Working Load Limit), Pounds
       [Horizontal angles shown in parentheses]

__________________________________________
        |
        | Triple and quadruple sling (3)
        |    vertical angle (1)

 Chain  |_________________________________
  size, |         |         |

 inches | 30 deg. | 45 deg. | 60 deg.
        |(60 deg.)|(45 deg.)|(30 deg.)
________|_________|_________|_____________
        |         |         |
1/4.....|   8,400 |   6,800 |   4,900
3/8.....|  17,000 |  14,000 |   9,900
1/2.....|  29,000 |  24,000 |  17,000
5/8.....|  43,000 |  35,000 |  24,500
3/4.....|  59,500 |  48,500 |  34,500
7/8.....|  74,500 |  61,000 |  43,000
1.......| 101,000 |  82,000 |  58,000
1 1/8...| 115,500 |  94,500 |  66,500
1 1/4...| 149,000 | 121,500 |  86,000
1 3/8...| 174,000 | 141,000 | 100,500
1 1/2...| 207,000 | 169,000 | 119,500
1 3/4...| 258,000 | 210,000 | 150,000
________|_________|_________|_____________


(1) Rating of multileg slings adjusted for angle of loading measured as the included angle between the inclined leg and the vertical as shown in Figure S-5.

(2) Rating of multileg slings adjusted for angle of loading between the inclined leg and the horizontal plane of the load, as shown in Figure S-5.

(3) Quadruple sling rating is same as triple sling because normal lifting practice may not distribute load uniformly to all 4 legs.

* Other grades of proof tested steel chain include Proof Coil, BBB Coil and Hi-Test Chain. These grades are not recommended for overhead lifting and therefore are not covered by this order.

NOTE: Authority cited: Section 142.3, Labor Code. Reference: Section 142.3, Labor Code.

HISTORY

1. New NOTE filed 5-1-87; operative 5-31-87 (Register 87, No. 19).

HISTORY

1. Editorial corrrection typesetting Table S-1a (Register 92, No. 33).

Table S-1a

Minimum Allowable Chain Size At Any Point of Link ______________________________________________ | Chain size, | Minimum allowable chain inches | size, inches _________________|____________________________ | 1/4 | 13/64 3/8 | 19/64 1/2 | 25/64 5/8 | 31/64 3/4 | 19/32 7/8 | 45/64 1 | 13/16 1 1/8 | 29/32 1 1/4 | 1 1 3/8 | 1 3/32 1 1/2 | 1 3/16 1 3/4 | 1 13/32 _________________|____________________________

Table S-2
Safe Working Loads for Wrought Iron Chain
(In Pounds or Tons of 2000 Pounds)
Nominal size chain
(Stock inch)
Single leg Angles from the horizontal
60-degree angle 45-degree angle 30-degree angle
1/4* 1060 Pounds 1835 Pounds 1500 Pounds 1060 Pounds
1/16* 1655 2865 2340 1655
3/8 2385          2.1   Tons 3370 2385
7/16* 3250 2.8          2.3   Tons 3250
1/2          2.1   Tons 3.7 3.0          2.1   Tons
3/16* 2.7 4.6 3.8 2.7
3/8 3.3 5.7 4.7 3.3
3/4 4.8 8.3 5.7 4.8
7/8 6.5 11.2 9.2 6.5
1 8.5 14.7 12.0 8.5
1 1/2 10.0 17.3 14.2 10.0
1 1/4 12.4 21.4 17.5 12.4
1 3/8 15.0 25.9 21.1 15.0
1 1/2 17.8 30.8 25.2 17.8
1 5/8 30.9 36.2 29.5 20.9
1 3/4 24.2 42.0 34.3 24.2
1 7/8 27.6 47.9 39.1 27.6
2 31.6 54.8 44.8 31.0

* These sizes of wrought iron chain are no longer manufactured in the United States. The source is ASTM A56-68, Specifications for Wrought Iron Crane Chain.

NOTE: Authority cited: Section 142.3, Labor Code. Reference: Section 142.3, Labor Code.

HISTORY

1. New NOTE filed 5-1-87; operative 5-31-87 (Register 87, No. 19).

  TABLE S-3. - RATED CAPACITIES FOR SINGLE LEG SLINGS

   6x19 and 6x37 Classification Improved Plow Steel Grade Rope
                    With Fiber Core (FC)

___________________________________________________________
                 |                                         |
       Rope      | Rated capacities, tons (2,000 lb)       |
_________________|_________________________________________|
        |        |                    |                    |
  Dia   |        |       Vertical     |       Choker       |
(inches)| Constr |____________________|____________________|
        |        |      |      |      |      |      |      |
        |        |  HT  |  MS  |   S  |  HT  |  MS  |   S  |
________|________|______|______|______|______|______|______|
        |        |      |      |      |      |      |      |
    1/4 |   6x19 | 0.49 | 0.51 | 0.55 | 0.37 | 0.38 | 0.41 |
   5/16 |   6x19 | 0.76 | 0.79 | 0.85 | 0.57 | 0.59 | 0.64 |
    3/8 |   6x19 |  1.1 |  1.1 |  1.2 | 0.80 | 0.85 | 0.91 |
   7/16 |   6x19 |  1.4 |  1.5 |  1.6 |  1.1 |  1.1 |  1.2 |
    1/2 |   6x19 |  1.8 |  2.0 |  2.1 |  1.4 |  1.5 |  1.6 |
   9/16 |   6x19 |  2.3 |  2.5 |  2.7 |  1.7 |  1.9 |  2.0 |
    5/8 |   6x19 |  2.8 |  3.1 |  3.3 |  2.1 |  2.3 |  2.5 |
    3/4 |   6x19 |  3.9 |  4.4 |  4.8 |  2.9 |  3.3 |  3.6 |
    7/8 |   6x19 |  5.1 |  5.9 |  6.4 |  3.9 |  4.5 |  4.8 |
      1 |   6x19 |  6.7 |  7.7 |  8.4 |  5.0 |  5.8 |  6.3 |
  1 1/8 |   6x19 |  8.4 |  9.5 | 10.0 |  6.3 |  7.1 |  7.9 |
  1 1/4 |   6x37 |  9.8 | 11.0 | 12.0 |  7.4 |  8.3 |  9.2 |
  1 3/8 |   6x37 | 12.0 | 13.0 | 15.0 |  8.9 | 10.0 | 11.0 |
  1 1/2 |   6x37 | 14.0 | 16.0 | 17.0 | 10.0 | 12.0 | 13.0 |
  1 5/8 |   6x37 | 16.0 | 18.0 | 21.0 | 12.0 | 14.0 | 15.0 |
  1 3/4 |   6x37 | 19.0 | 21.0 | 24.0 | 14.0 | 16.0 | 18.0 |
      2 |   6x37 | 25.0 | 28.0 | 31.0 | 18.0 | 21.0 | 23.0 |
________|________|______|______|______|______|______|______|


  TABLE S-3. - RATED CAPACITIES FOR SINGLE LEG SLINGS

                    (CONTINUED)

   6x19 and 6x37 Classification Improved Plow Steel Grade Rope
                    With Fiber Core (FC)

_____________________________________________________
                 |
       Rope      | Rated capacities, tons (2,000 lb)
_________________|___________________________________
        |        |
  Dia   |        |  Vertical Basket(1)
(inches)| Constr |___________________________________
        |        |      |      |
        |        |  HT  |  MS  |   S
________|________|______|______|_____________________
        |        |      |      |
    1/4 |   6x19 | 0.99 |  1.0 |  1.1
   5/16 |   6x19 |  1.5 |  1.6 |  1.7
    3/8 |   6x19 |  2.1 |  2.2 |  2.4
   7/16 |   6x19 |  2.9 |  3.0 |  3.3
    1/2 |   6x19 |  3.7 |  3.9 |  4.3
   9/16 |   6x19 |  4.6 |  5.0 |  5.4
    5/8 |   6x19 |  5.6 |  6.2 |  6.7
    3/4 |   6x19 |  7.8 |  8.8 |  9.5
    7/8 |   6x19 | 10.0 | 12.0 | 13.0
      1 |   6x19 | 13.0 | 15.0 | 17.0
  1 1/8 |   6x19 | 17.0 | 19.0 | 21.0
  1 1/4 |   6x37 | 20.0 | 22.0 | 25.0
  1 3/8 |   6x37 | 24.0 | 27.0 | 30.0
  1 1/2 |   6x37 | 28.0 | 32.0 | 35.0
  1 5/8 |   6x37 | 33.0 | 37.0 | 41.0
  1 3/4 |   6x37 | 38.0 | 43.0 | 48.0
      2 |   6x37 | 49.0 | 55.0 | 62.0
________|________|______|______|__________________

HT = Hand Tucked Splice and Hidden Tuck Splice.

For hidden tuck splice (IWRC) use values in HT columns.

MS = Mechanical Splice

S = Swaged or Zinc Poured Socket

* These values only apply when the D/d ratio for HT slings is 10 or greater, and for MS and S slings is 20 or greater where:

D = Diameter of curvature around which the body of the sling is bent.

d = Diameter of rope.

NOTE: Authority cited: Section 142.3, Labor Code. Reference: Section 142.3, Labor Code.

HISTORY

1. New NOTE filed 5-1-87; operative 5-31-87 (Register 87, No. 19).

 TABLE S-4. - RATED CAPACITIES FOR SINGLE LEG SLINGS

   6x19 and 6x37 Classification Improved Plow Steel Grade Rope
                    With Independent Wire Rope Core  (IWRC)

___________________________________________________________
                 |                                         |
       Rope      | Rated capacities, tons (2,000 lb)       |
_________________|_________________________________________|
        |        |                    |                    |
  Dia   |        |       Vertical     |       Choker       |
(inches)| Constr |____________________|____________________|
        |        |      |      |      |      |      |      |
        |        |  HT  |  MS  |   S  |  HT  |  MS  |   S  |
________|________|______|______|______|______|______|______|
        |        |      |      |      |      |      |      |
    1/4 |   6x19 | 0.53 | 0.56 | 0.59 | 0.40 | 0.42 | 0.44 |
   5/16 |   6x19 | 0.81 | 0.87 | 0.92 | 0.61 | 0.65 | 0.69 |
    3/8 |   6x19 |  1.1 |  1.2 |  1.3 | 0.86 | 0.93 | 0.98 |
   7/16 |   6x19 |  1.5 |  1.7 |  1.8 |  1.2 |  1.3 |  1.3 |
    1/2 |   6x19 |  2.0 |  2.2 |  2.3 |  1.5 |  1.6 |  1.7 |
   9/16 |   6x19 |  2.5 |  2.7 |  2.9 |  1.8 |  2.1 |  2.2 |
    5/8 |   6x19 |  3.0 |  3.4 |  3.6 |  2.2 |  2.5 |  2.7 |
    3/4 |   6x19 |  4.2 |  4.9 |  5.1 |  3.1 |  3.6 |  3.8 |
    7/8 |   6x19 |  5.5 |  6.6 |  6.9 |  4.1 |  4.9 |  5.2 |
      1 |   6x19 |  7.2 |  8.5 |  9.0 |  5.4 |  6.4 |  6.7 |
  1 1/8 |   6x19 |  9.0 | 10.0 | 11.0 |  6.8 |  7.8 |  8.5 |
  1 1/4 |   6x37 | 10.0 | 12.0 | 13.0 |  7.9 |  9.2 |  9.9 |
  1 3/8 |   6x37 | 13.0 | 15.0 | 16.0 |  9.6 | 11.0 | 12.0 |
  1 1/2 |   6x37 | 15.0 | 17.0 | 19.0 | 11.0 | 13.0 | 14.0 |
  1 5/8 |   6x37 | 18.0 | 20.0 | 22.0 | 13.0 | 15.0 | 17.0 |
  1 3/4 |   6x37 | 20.0 | 24.0 | 26.0 | 15.0 | 18.0 | 19.0 |
      2 |   6x37 | 26.0 | 30.0 | 33.0 | 20.0 | 23.0 | 25.0 |
________|________|______|______|______|______|______|______|


  TABLE S-4. - RATED CAPACITIES FOR SINGLE LEG SLINGS

                    (CONTINUED)

   6x19 and 6x37 Classification Improved Plow Steel Grade Rope
                    With Independent Wire Rope Core  (IWRC)

_____________________________________________________
                 |
       Rope      | Rated capacities, tons (2,000 lb)
_________________|___________________________________
        |        |
  Dia   |        |  Vertical Basket(1)
(inches)| Constr |___________________________________
        |        |      |      |
        |        |  HT  |  MS  |   S
________|________|______|______|_____________________
        |        |      |      |
    1/4 |   6x19 |  1.0 |  1.1 |  1.2
   5/16 |   6x19 |  1.6 |  1.7 |  1.8
    3/8 |   6x19 |  2.3 |  2.5 |  2.6
   7/16 |   6x19 |  3.1 |  3.4 |  3.5
    1/2 |   6x19 |  3.9 |  4.4 |  4.6
   9/16 |   6x19 |  4.9 |  5.5 |  5.8
    5/8 |   6x19 |  6.0 |  6.8 |  7.2
    3/4 |   6x19 |  8.4 |  9.7 | 10.0
    7/8 |   6x19 | 11.0 | 13.0 | 14.0
      1 |   6x19 | 14.0 | 17.0 | 18.0
  1 1/8 |   6x19 | 18.0 | 21.0 | 23.0
  1 1/4 |   6x37 | 21.0 | 24.0 | 26.0
  1 3/8 |   6x37 | 25.0 | 29.0 | 32.0
  1 1/2 |   6x37 | 30.0 | 35.0 | 38.0
  1 5/8 |   6x37 | 35.0 | 41.0 | 44.0
  1 3/4 |   6x37 | 41.0 | 47.0 | 51.0
      2 |   6x37 | 53.0 | 61.0 | 66.0
________|________|______|______|__________________



HT = Hand Tucked Splice. For hidden tuck splice (IWRC) use Table I values in HT column.

MS = Mechanical Splice.

S = Swaged or Zinc Poured Socket.

* These values only apply when the D/d ratio for HT slings is 10 or greater, and for MS and S Slings is 20 or greater where:

D = Diameter of curvature around which the body of the sling is bent.

d = Diameter of rope.

NOTE: Authority cited: Section 142.3, Labor Code. Reference: Section 142.3, Labor Code.

HISTORY

1. New NOTE filed 5-1-87; operative 5-31-87 (Register 87, No. 19).

TABLE S-5. -- RATED CAPACITIES FOR SINGLE LEG SLINGS

  Cable Laid Rope -- Mechanical Splice Only

  7x7x7 & 7X7X19 Constructions Galvanized Aircraft Grade Rope
  7x6x19 IWRC Construction Improved Plow Steel Grade Rope

_____________________________________________________________
                           |
          Rope             | Rated capacities, tons (2,000 lb)
___________________________|_________________________________
           |               |          |        |
   Dia     |      Constr   | Vertical | Choker | Vertical

 (inches)  |               |          |        | basket(1)
___________|_______________|__________|________|_____________
           |               |          |        |
1/4........| 7x7x7.........|     0.50 |   0.38 |       1.0
3/8........| 7x7x7.........|      1.1 |   0.81 |       2.0
1/2........| 7x7x7.........|      1.8 |    1.4 |       3.7
5/8........| 7x7x7.........|      2.8 |    2.1 |       5.5
3/4........| 7x7x7.........|      3.8 |    2.9 |       7.6
5/8........| 7x7x19........|      2.9 |    2.2 |       5.8
3/4........| 7x7x19........|      4.1 |    3.0 |       8.1
7/8........| 7x7x19........|      5.4 |    4.0 |      11.0
1..........| 7x7x19........|      6.9 |    5.1 |      14.0
1 1/8......| 7x7x19........|      8.2 |    6.2 |      16.0
1 1/4......| 7x7x19........|      9.9 |    7.4 |      20.0
3/4........| 7x6x19 IWRC...|      3.8 |    2.8 |       7.6
7/8........| 7x6x19 IWRC...|      5.0 |    3.8 |      10.0
1..........| 7x6x19 IWRC...|      6.4 |    4.8 |      13.0
1 1/8......| 7x6x19 IWRC...|      7.7 |    5.8 |      15.0
1 1/4......| 7x6x19 IWRC...|      9.2 |    6.9 |      18.0
1 5/16.....| 7x6x19 IWRC...|     10.0 |    7.5 |      20.0
1 3/8......| 7x6x19 IWRC...|     11.0 |    8.2 |      22.0
1 1/2......| 7x6x19 IWRC...|     13.0 |    9.6 |      26.0
           |               |          |        |
___________|_______________|__________|________|_____________

HISTORY

1. New NOTE filed 5-1-87; operative 5-31-87 (Register 87, No. 19).


 TABLE S-6. -- RATED CAPACITIES FOR SINGLE LEG SLINGS

        8-Part and 6-Part Braided Rope

  6x7 and 6x19 Construction Improved Plow Steel Grade Rope

    7x7 Construction Galvanized Aircraft Grade Rope

_____________________________________________________________________
                |
Component ropes |          Rated capacities, tons (2,000 lb)
________________|____________________________________________________
         |      |                 |                 |
Diameter |      |    Vertical     |     Choker      | Basket vertical
(inches) |Constr|                 |                 |  to 30 deg.(1)
         |      |_________________|_________________|________________
         |      |        |        |        |        |        |
         |      | 8-Part | 6-Part | 8-Part | 6-Part | 8-Part | 6-Part
_________|______|________|________|________|________|________|_______
         |      |        |        |        |        |        |
3/32.....|  6x7 |   0.42 |   0.32 |   0.32 |   0.24 |   0.74 |   0.55
1/8......|  6x7 |   0.76 |   0.57 |   0.57 |   0.42 |    1.3 |   0.98
3/16.....|  6x7 |    1.7 |    1.3 |    1.3 |   0.94 |    2.9 |    2.2
3/32.....|  7x7 |   0.51 |   0.39 |   0.38 |   0.29 |   0.89 |   0.67
1/8......|  7x7 |   0.95 |   0.71 |   0.71 |   0.53 |    1.6 |    1.2
3/16.....|  7x7 |    2.1 |    1.5 |    1.5 |    1.2 |    3.6 |    2.7
3/16.....| 6x19 |    1.7 |    1.3 |    1.3 |   0.98 |    3.0 |    2.2
1/4......| 6x19 |    3.1 |    2.3 |    2.3 |    1.7 |    5.3 |    4.0
5/16.....| 6x19 |    4.8 |    3.6 |    3.6 |    2.7 |    8.3 |    6.2
3/8......| 6x19 |    6.8 |    5.1 |    5.1 |    3.8 |   12.0 |    8.9
7/16.....| 6x19 |    9.3 |    6.9 |    6.9 |    5.2 |   16.0 |   12.0
1/2......| 6x19 |   12.0 |    9.0 |    9.0 |    6.7 |   21.0 |   15.0
9/16.....| 6x19 |   15.0 |   11.0 |   11.0 |    8.5 |   26.0 |   20.0
5/8......| 6x19 |   19.0 |   14.0 |   14.0 |   10.0 |   32.0 |   24.0
3/4......| 6x19 |   27.0 |   20.0 |   20.0 |   15.0 |   46.0 |   35.0
7/8......| 6x19 |   36.0 |   27.0 |   27.0 |   20.0 |   62.0 |   47.0
1........| 6x19 |   47.0 |   35.0 |   35.0 |   26.0 |   81.0 |   61.0
         |      |        |        |        |        |        |
_________|______|________|________|________|________|________|_______

* These values only apply when the D/d ratio is 20 or greater where:

D = Diameter of curvature around which the body of the sling is bent.

d = Diameter of component rope.

NOTE: Authority cited: Section 142.3, Labor Code. Reference: Section 142.3, Labor Code.

HISTORY

1. New NOTE filed 5-1-87; operative 5-31-87 (Register 87, No. 19).

TABLE S-7.-- RATED CAPACITIES FOR 2-LEG
                  AND 3-LEG BRIDLE SLINGS

    6x19 and 6x37 Classification Improved Plow Steel
        Grade Rope With Fiber Core (FC)
        [Horizontal angles shown in parentheses]

_______________________________________________________________
                    |                                         |
          Rope      |      Rated capacities, tons (2,000 lb)  |
____________________|_________________________________________|
           |        |                                         |
           |        |       2-Leg bridle slings               |
           |        |_________________________________________|
   Dia     | Constr |             |             |             |
  [in.]    |        |Vert  30 deg.|    45 deg.  |Vert 60 deg. |
           |        |Horz(60 deg.)|    angle    |Horz(30 deg.)|
           |        |_____________|_____________|_____________|
           |        |      |      |      |      |      |      |
           |        |  HT  |  MS  |  HT  |  MS  |  HT  |  MS  |
___________|________|______|______|______|______|______|______|
           |        |      |      |      |      |      |      |
       1/4 |   6x19 | 0.85 | 0.83 | 0.70 | 0.72 | 0.49 | 0.51 |
      5/16 |   6x19 |  1.3 |  1.4 |  1.1 |  1.1 | 0.76 | 0.79 |
       3/8 |   6x19 |  1.8 |  1.9 |  1.5 |  1.6 |  1.1 |  1.1 |
      7/16 |   6x19 |  2.5 |  2.6 |  2.0 |  2.2 |  1.4 |  1.5 |
       1/2 |   6x19 |  3.2 |  3.4 |  2.6 |  2.8 |  1.8 |  2.0 |
      9/16 |   6x19 |  4.0 |  4.3 |  3.2 |  3.5 |  2.3 |  2.5 |
       5/8 |   6x19 |  4.8 |  5.3 |  4.0 |  4.4 |  2.8 |  3.1 |
       3/4 |   6x19 |  6.8 |  7.6 |  5.5 |  6.2 |  3.9 |  4.4 |
       7/8 |   6x19 |  8.9 | 10.0 |  7.3 |  8.4 |  5.1 |  5.9 |
         1 |   6x19 | 11.0 | 13.0 |  9.4 | 11.0 |  6.7 |  7.7 |
     1 1/8 |   6x19 | 14.0 | 16.0 | 12.0 | 13.0 |  8.4 |  9.3 |
     1 1/4 |   6x37 | 17.0 | 19.0 | 14.0 | 16.0 |  9.8 | 11.0 |
     1 3/8 |   6x37 | 20.0 | 23.0 | 17.0 | 19.0 | 12.0 | 13.0 |
     1 1/2 |   6x37 | 24.0 | 27.0 | 20.0 | 22.0 | 14.0 | 16.0 |
     1 5/8 |   6x37 | 28.0 | 32.0 | 23.0 | 26.0 | 16.0 | 18.0 |
     1 3/4 |   6x37 | 33.0 | 37.0 | 27.0 | 30.0 | 19.0 | 21.0 |
         2 |   6x37 | 43.0 | 48.0 | 35.0 | 39.0 | 25.0 | 28.0 |
___________|________|______|______|______|______|______|______|



 TABLE S-7.-- RATED CAPACITIES FOR 2-LEG
                  AND 3-LEG BRIDLE SLINGS

                [Continued]

    6x19 and 6x37 Classification Improved Plow Steel
        Grade Rope With Fiber Core (FC)
        [Horizontal angles shown in parentheses]

_______________________________________________________________
                    |                                         |
          Rope      |      Rated capacities, tons (2,000 lb)  |
____________________|_________________________________________|
           |        |                                         |
           |        |       3-Leg bridle slings               |
           |        |_________________________________________|
   Dia     | Constr |             |             |             |
  [in.]    |        |Vert 30 deg. |    45 deg.  |Vert 60 deg. |
           |        |Horz(60 deg.)|    angle    |Horz(30 deg.)|
           |        |_____________|_____________|_____________|
           |        |      |      |      |      |      |      |
           |        |  HT  |  MS  |  HT  |  MS  |  HT  |  MS  |
___________|________|______|______|______|______|______|______|
           |        |      |      |      |      |      |      |
       1/4 |   6x19 |  1.3 |  1.3 |  1.0 |  1.1 | 0.74 | 0.76 |
      5/16 |   6x19 |  2.0 |  2.0 |  1.6 |  1.7 |  1.1 |  1.2 |
       3/8 |   6x19 |  2.8 |  2.9 |  2.3 |  2.4 |  1.6 |  1.7 |
      7/16 |   6x19 |  3.7 |  4.0 |  3.0 |  3.2 |  2.1 |  2.3 |
       1/2 |   6x19 |  4.8 |  5.1 |  3.9 |  4.2 |  2.8 |  3.0 |
      9/16 |   6x19 |  6.0 |  6.5 |  4.9 |  5.3 |  3.4 |  3.7 |
       5/8 |   6x19 |  7.3 |  8.0 |  5.9 |  6.5 |  4.2 |  4.6 |
       3/4 |   6x19 | 10.0 | 11.0 |  8.3 |  9.3 |  5.8 |  6.6 |
       7/8 |   6x19 | 13.0 | 15.0 | 11.0 | 13.0 |  7.7 |  8.9 |
         1 |   6x19 | 17.0 | 20.0 | 14.0 | 16.0 | 10.0 | 11.0 |
     1 1/8 |   6x19 | 22.0 | 24.0 | 18.0 | 20.0 | 13.0 | 14.0 |
     1 1/4 |   6x37 | 25.0 | 29.0 | 21.0 | 23.0 | 15.0 | 17.0 |
     1 3/8 |   6x37 | 31.0 | 35.0 | 25.0 | 28.0 | 18.0 | 20.0 |
     1 1/2 |   6x37 | 36.0 | 41.0 | 30.0 | 33.0 | 21.0 | 24.0 |
     1 5/8 |   6x37 | 43.0 | 48.0 | 35.0 | 39.0 | 25.0 | 28.0 |
     1 3/4 |   6x37 | 49.0 | 56.0 | 40.0 | 45.0 | 28.0 | 32.0 |
         2 |   6x37 | 64.0 | 72.0 | 52.0 | 59.0 | 37.0 | 41.0 |
___________|________|______|______|______|______|______|______|


HT = Hand Tucked Splice.

MS = Mechanical Splice.

NOTE: Authority cited: Section 142.3, Labor Code. Reference: Section 142.3, Labor Code.

HISTORY

1. New NOTE filed 5-1-87; operative 5-31-87 (Register 87, No. 19).



Table S-8.-- RATED CAPACITIES FOR 2-LEG
                  AND 3-LEG BRIDLE SLINGS

    6x19 and 6x37 Classification Improved Plow Steel
        Grade Rope With Independent Wire Rope Core (IWRC)
        [Horizontal angles shown in parentheses]

_______________________________________________________________
                    |                                         |
          Rope      |      Rated capacities, tons (2,000 lb)  |
____________________|_________________________________________|
           |        |                                         |
           |        |       2-Leg bridle slings               |
           |        |_________________________________________|
   Dia     | Constr |             |             |             |
  [in.]    |        |   30 deg.   |    45 deg.  |   60 deg.   |
           |        |  (60 deg.)  |    angle    |  (30 deg.)  |
           |        |_____________|_____________|_____________|
           |        |      |      |      |      |      |      |
           |        |  HT  |  MS  |  HT  |  MS  |  HT  |  MS  |
___________|________|______|______|______|______|______|______|
           |        |      |      |      |      |      |      |
       1/4 |   6x19 | 0.92 | 0.97 | 0.75 | 0.79 | 0.53 | 0.56 |
      5/16 |   6x19 |  1.4 |  1.5 |  1.1 |  1.2 | 0.81 | 0.87 |
       3/8 |   6x19 |  2.0 |  2.1 |  1.6 |  1.8 |  1.1 |  1.2 |
      7/16 |   6x19 |  2.7 |  2.9 |  2.2 |  2.4 |  1.5 |  1.7 |
       1/2 |   6x19 |  3.4 |  3.8 |  2.8 |  3.1 |  2.0 |  2.2 |
      9/16 |   6x19 |  4.3 |  4.8 |  3.5 |  3.9 |  2.5 |  2.7 |
       5/8 |   6x19 |  5.2 |  5.9 |  4.2 |  4.8 |  3.0 |  3.4 |
       3/4 |   6x19 |  7.3 |  8.4 |  5.9 |  6.9 |  4.2 |  4.9 |
       7/8 |   6x19 |  9.6 | 11.0 |  7.8 |  9.3 |  5.5 |  6.6 |
         1 |   6x19 | 12.0 | 15.0 | 10.0 | 12.0 |  7.2 |  8.5 |
     1 1/8 |   6x19 | 16.0 | 18.0 | 13.0 | 15.0 |  9.0 | 10.0 |
     1 1/4 |   6x37 | 18.0 | 21.0 | 15.0 | 17.0 | 10.0 | 12.0 |
     1 3/8 |   6x37 | 22.0 | 25.0 | 18.0 | 21.0 | 13.0 | 15.0 |
     1 1/2 |   6x37 | 26.0 | 30.0 | 21.0 | 25.0 | 15.0 | 17.0 |
     1 5/8 |   6x37 | 31.0 | 35.0 | 25.0 | 29.0 | 18.0 | 20.0 |
     1 3/4 |   6x37 | 35.0 | 41.0 | 29.0 | 33.0 | 20.0 | 24.0 |
         2 |   6x37 | 46.0 | 53.0 | 37.0 | 43.0 | 26.0 | 30.0 |
___________|________|______|______|______|______|______|______|



 TABLE S-8.-- RATED CAPACITIES FOR 2-LEG
                  AND 3-LEG BRIDLE SLINGS

                [Continued]

    6x19 and 6x37 Classification Improved Plow Steel
        Grade Rope With Independent Wire Rope Core (IWRC)
        [Horizontal angles shown in parentheses]

_______________________________________________________________
                    |                                         |
          Rope      |      Rated capacities, tons (2,000 lb)  |
____________________|_________________________________________|
           |        |                                         |
           |        |       3-Leg bridle slings               |
           |        |_________________________________________|
   Dia     | Constr |             |             |             |
  [in.]    |        |Vert  30 deg.|    45 deg.  |Vert  60 deg.|
           |        |Horz(60 deg.)|    angle    |Horz(30 deg.)|
           |        |_____________|_____________|_____________|
           |        |      |      |      |      |      |      |
           |        |  HT  |  MS  |  HT  |  MS  |  HT  |  MS  |
___________|________|______|______|______|______|______|______|
           |        |      |      |      |      |      |      |
       1/4 |   6x19 |  1.4 |  1.4 |  1.1 |  1.2 | 0.79 | 0.84 |
      5/16 |   6x19 |  2.1 |  2.3 |  1.7 |  1.8 |  1.2 |  1.3 |
       3/8 |   6x19 |  3.0 |  3.2 |  2.4 |  2.6 |  1.7 |  1.9 |
      7/16 |   6x19 |  4.0 |  4.4 |  3.3 |  3.6 |  2.3 |  2.5 |
       1/2 |   6x19 |  5.1 |  5.7 |  4.2 |  4.6 |  3.0 |  3.3 |
      9/16 |   6x19 |  6.4 |  7.1 |  5.2 |  5.8 |  3.7 |  4.1 |
       5/8 |   6x19 |  7.8 |  8.8 |  6.4 |  7.2 |  4.5 |  5.1 |
       3/4 |   6x19 | 11.0 | 13.0 |  8.9 | 10.0 |  6.3 |  7.3 |
       7/8 |   6x19 | 14.0 | 17.0 | 12.0 | 14.0 |  8.3 |  9.9 |
         1 |   6x19 | 19.0 | 22.0 | 15.0 | 18.0 | 11.0 | 13.0 |
     1 1/8 |   6x19 | 23.0 | 27.0 | 19.0 | 22.0 | 13.0 | 16.0 |
     1 1/4 |   6x37 | 27.0 | 32.0 | 22.0 | 26.0 | 16.0 | 18.0 |
     1 3/8 |   6x37 | 33.0 | 38.0 | 27.0 | 31.0 | 19.0 | 22.0 |
     1 1/2 |   6x37 | 39.0 | 45.0 | 32.0 | 37.0 | 23.0 | 26.0 |
     1 5/8 |   6x37 | 46.0 | 53.0 | 38.0 | 43.0 | 27.0 | 31.0 |
     1 3/4 |   6x37 | 53.0 | 61.0 | 43.0 | 50.0 | 31.0 | 35.0 |
         2 |   6x37 | 68.0 | 79.0 | 56.0 | 65.0 | 40.0 | 46.0 |
___________|________|______|______|______|______|______|______|


HT = Hand Tucked Splice.

MS = Mechanical Splice.

NOTE: Authority cited: Section 142.3, Labor Code. Reference: Section 142.3, Labor Code.

HISTORY

1. New NOTE filed 5-1-87; operative 5-31-87 (Register 87, No. 19).


TABLE S-9. -- RATED CAPACITIES FOR 2-LEG
                   AND 3-LEG BRIDLE SLINGS

       Cable Laid Rope - Mechanical Splice Only

 7x7x7 and 7x7x19 Construction Galvanized Aircraft Grade Rope
  7x6x19 IWRC Construction Improved Plow Steel Grade Rope
         [Horizontal angles shown in parenthesis]

___________________________________________________________
                       |
       Rope            |  Rated capacities, tons (2,000 lb)
_______________________|___________________________________
         |             |
         |             |  2-Leg bridle slings
         |             |___________________________________
   Dia   |    Constr   |          |         |
  [in.]  |             |V 30 deg. | 45 deg. | V 60 deg.
         |             |H(60 deg.)|  angle  | H(30 deg.)
_________|_____________|_________ |_________|_______________
         |             |          |         |
1/4......| 7x7x7.......|    0.87  |    0.71 |    0.50
3/8......| 7x7x7.......|     1.9  |     1.5 |     1.1
1/2......| 7x7x7.......|     3.2  |     2.6 |     1.8
5/8......| 7x7x7.......|     4.8  |     3.9 |     2.8
3/4......| 7x7x7.......|     6.6  |     5.4 |     3.8
5/8......| 7x7x19......|     5.0  |     4.1 |     2.9
3/4......| 7x7x19......|     7.0  |     5.7 |     4.1
7/8......| 7x7x19......|     9.3  |     7.6 |     5.4
1........| 7x7x19......|    12.0  |     9.7 |     6.9
1 1/8....| 7x7x19......|    14.0  |    12.0 |     8.2
1 1/4....| 7x7x19......|    17.0  |    14.0 |     9.9
3/4......| 7x6x19 IWRC.|     6.6  |     5.4 |     3.8
7/8......| 7x6x19 IWRC.|     8.7  |     7.1 |     5.0
1........| 7x6x19 IWRC.|    11.0  |     9.0 |     6.4
1 1/8....| 7x6x19 IWRC.|    13.0  |    11.0 |     7.7
1 1/4....| 7x6x19 IWRC.|    16.0  |    13.0 |     9.2
1 5/16...| 7x6x19 IWRC.|    17.0  |    14.0 |    10.0
1 3/8....| 7x6x19 IWRC.|    19.0  |    15.0 |    11.0
1 1/2....| 7x6x19 IWRC.|    22.0  |    18.0 |    13.0
         |             |          |         |
_________|_____________|__________|_________|______________



 TABLE S-9. -- RATED CAPACITIES FOR 2-LEG
                   AND 3-LEG BRIDLE SLINGS

                   [Continued]

       Cable Laid Rope - Mechanical Splice Only

 7x7x7 and 7x7x19 Construction Galvanized Aircraft Grade Rope
  7x6x19 IWRC Construction Improved Plow Steel Grade Rope
         [Horizontal angles shown in parenthesis]

____________________________________________________________
                       |
       Rope            |  Rated capacities, tons (2,000 lb)
_______________________|_____________________________________
         |             |
         |             |  3-Leg bridle slings
         |             |____________________________________
   Dia   |    Constr   |          |         |
  [in.]  |             |V 30 deg. | 45 deg. |V 60 deg.
         |             |H(60 deg.)|  angle  |H(30 deg.)
_________|_____________|_________ |_________|________________
         |             |          |         |
1/4......| 7x7x7 ......|     1.3  |     1.1 |    0.75
3/8......| 7x7x7.......|     2.8  |     2.3 |     1.6
1/2......| 7x7x7.......|     4.8  |     3.9 |     2.8
5/8......| 7x7x7.......|     7.2  |     5.9 |     4.2
3/4......| 7x7x7.......|     9.9  |     8.1 |     3.7
5/8......| 7x7x19......|     7.5  |     6.1 |     4.3
3/4......| 7x7x19......|    10.0  |     8.6 |     6.1
7/8......| 7x7x19......|    14.0  |    11.0 |     8.1
1........| 7x7x19......|    18.0  |    14.0 |    10.0
1 1/8....| 7x7x19......|    21.0  |    17.0 |    12.0
1 1/4....| 7x7x19......|    26.0  |    21.0 |    15.0
3/4......| 7x6x19 IWRC.|     9.9  |     8.0 |     5.7
7/8......| 7x6x19 IWRC.|    13.0  |    11.0 |     7.5
1........| 7x6x19 IWRC.|    17.0  |    13.0 |     9.6
1 1/8....| 7x6x19 IWRC.|    20.0  |    16.0 |    11.0
1 1/4....| 7x6x19 IWRC.|    24.0  |    20.0 |    14.0
1 5/16...| 7x6x19 IWRC.|    26.0  |     21.0 |    15.0
1 3/8....| 7x6x19 IWRC.|    28.0  |    23.0 |    16.0
1 1/2....| 7x6x19 IWRC.|    33.0  |    27.0 |    19.0
         |             |          |         |
_________|_____________|__________|_________|_______________

NOTE: Authority cited: Section 142.3, Labor Code. Reference: Section 142.3, Labor Code.

HISTORY

1. New NOTE filed 5-1-87; operative 5-31-87 (Register 87, No. 19).

TABLE S-10. -- RATED CAPACITIES FOR 2-LEG AND
                     3-LEG BRIDLE SLINGS

            8-Part and 6-Part Braided Rope
     6x7 and 6x19 Construction Improved Plow Steel Grade Rope
       7x7 Construction Galvanized Aircraft Grade Rope
           [Horizontal angles shown in parentheses]

_____________________________________________________________________
                |
      Rope      |          Rated capacities, tons (2,000 lb)
________________|____________________________________________________
       |        |
       |        |              2-Leg bridle sling
       |        |
       |        |____________________________________________________
       |        |                 |                 |
  Dia  | Constr | Vert 30 deg     |  45 deg angle   | Vert 60 deg

 (in.) |        | Horz (60 deg)   |                 | Horz (30 deg)
       |        |_________________|_________________|________________
       |        |        |        |        |        |        |
       |        | 8-Part | 6-Part | 8-Part | 6-Part | 8-Part | 6-Part
_______|________|________|________|________|________|________|_______
       |        |        |        |        |        |        |
  3/32 |    6x7 |   0.74 |   0.55 |   0.60 |   0.45 |   0.42 |   0.32
   1/8 |    6x7 |    1.3 |   0.98 |    1.1 |   0.80 |   0.76 |   0.57
  3/16 |    6x7 |    2.9 |    2.2 |    2.4 |    1.8 |    1.7 |    1.3
  3/32 |    7x7 |   0.89 |   0.67 |   0.72 |   0.55 |   0.51 |   0.39
   1/8 |    7x7 |    1.6 |    1.2 |    1.3 |    1.0 |   0.95 |   0.71
  3/16 |    7x7 |    3.6 |    2.7 |    2.9 |    2.2 |    2.1 |    1.5
  3/16 |   6x19 |    3.0 |    2.2 |    2.4 |    1.8 |    1.7 |    1.3
   1/4 |   6x19 |    5.3 |    4.0 |    4.3 |    3.2 |    3.1 |    2.3
  5/16 |   6x19 |    8.3 |    6.2 |    6.7 |    5.0 |    4.8 |    3.6
   3/8 |   6x19 |   12.0 |    8.9 |    9.7 |    7.2 |    6.8 |    5.1
  7/16 |   6x19 |   16.0 |   12.0 |   13.0 |    9.8 |    9.3 |    6.9
   1/2 |   6x19 |   21.0 |   15.0 |   17.0 |   13.0 |   12.0 |    9.0
  9/16 |   6x19 |   26.0 |   20.0 |   21.0 |   16.0 |   15.0 |   11.0
   5/8 |   6x19 |   32.0 |   24.0 |   26.0 |   20.0 |   19.0 |   14.0
   3/4 |   6x19 |   46.0 |   35.0 |   38.0 |   28.0 |   27.0 |   20.0
   7/8 |   6x19 |   62.0 |   47.0 |   51.0 |   38.0 |   36.0 |   27.0
     1 |   6x19 |   81.0 |   61.0 |   66.0 |   50.0 |   47.0 |   35.0
       |        |        |        |        |        |        |
_______|________|________|________|________|________|________|_______


  TABLE S-10. -- RATED CAPACITIES FOR 2-LEG AND
                     3-LEG BRIDLE SLINGS

                    [Continued]

            8-Part and 6-Part Braided Rope
     6x7 and 6x19 Construction Improved Plow Steel Grade Rope
       7x7 Construction Galvanized Aircraft Grade Rope
           [Horizontal angles shown in parentheses]

______________________________________________________________________
                |
      Rope      |          Rated capacities, tons (2,000 lb)
________________|____________________________________________________
       |        |
       |        |              3-Leg bridle sling
       |        |
       |        |____________________________________________________
       |        |                 |                 |
  Dia  | Constr | Vert 30 deg     |  45 deg angle   | Vert 60 deg
 (in.) |        | Horz 60 deg     |                 | Horz 30 deg

       |        |_________________|_________________|________________
       |        |        |        |        |        |        |
       |        | 8-Part | 6-Part | 8-Part | 6-Part | 8-Part | 6-Part
_______|________|________|________|________|________|________|_______
       |        |        |        |        |        |        |
  3/32 |    6x7 |    1.1 |   0.83 |   0.90 |   0.68 |   0.64 |   0.48
   1/8 |    6x7 |    2.0 |    1.5 |    1.6 |    1.2 |    1.1 |   0.85
  3/16 |    6x7 |    4.4 |    3.3 |    3.6 |    2.7 |    2.5 |    1.9
  3/32 |    7x7 |    1.3 |    1.0 |    1.1 |   0.82 |   0.77 |   0.58
   1/8 |    7x7 |    2.5 |    1.8 |    2.0 |    1.5 |    1.4 |    1.1
  3/16 |    7x7 |    5.4 |    4.0 |    4.4 |    3.3 |    3.1 |    2.3
  3/16 |   6x19 |    4.5 |    3.4 |    3.7 |    2.8 |    2.6 |    1.9
   1/4 |   6x19 |    8.0 |    6.0 |    6.5 |    4.9 |    4.6 |    3.4
  5/16 |   6x19 |   12.0 |    9.3 |   10.0 |    7.6 |    7.1 |    5.4
   3/8 |   6x19 |   18.0 |   13.0 |   14.0 |   11.0 |   10.0 |    7.7
  7/16 |   6x19 |   24.0 |   18.0 |   20.0 |   15.0 |   14.0 |   10.0
   1/2 |   6x19 |   31.0 |   23.0 |   25.0 |   19.0 |   18.0 |   13.0
  9/16 |   6x19 |   39.0 |   29.0 |   32.0 |   24.0 |   23.0 |   17.0
   5/8 |   6x19 |   48.0 |   36.0 |   40.0 |   30.0 |   28.0 |   21.0
   3/4 |   6x19 |   69.0 |   52.0 |   56.0 |   42.0 |   40.0 |   30.0
   7/8 |   6x19 |   94.0 |   70.0 |   76.0 |   57.0 |   54.0 |   40.0
     1 |   6x19 |  122.0 |   91.0 |   99.0 |   74.0 |   70.0 |   53.0
       |        |        |        |        |        |        |
_______|________|________|________|________|________|________|_______

NOTE: Authority cited: Section 142.3, Labor Code. Reference: Section 142.3, Labor Code.

HISTORY

1. New NOTE filed 5-1-87; operative 5-31-87 (Register 87, No. 19).


Rated Capacities for Strand Laid Grommet Hand Tucked Improved Plow Steel Grade Rope TABLE S-11. -- RATED CAPACITIES FOR STRAND LAID GROMMET -- HAND TUCKED Improved Plow Steel Grade Rope _______________________________________________________________ | Rope body | Rated capacities, tons (2,000 lb) ______________________|________________________________________ | | | | Dia (inches) | Constr | Vertical | Choker | Vertical basket(1) _____________|________|__________|________|____________________ | | | | 1/4 | 7x19 | 0.85 | 0.64 | 1.7 5/16 | 7x19 | 1.3 | 1.0 | 2.6 3/8 | 7x19 | 1.9 | 1.4 | 3.8 7/16 | 7x19 | 2.6 | 1.9 | 5.2 1/2 | 7x19 | 3.3 | 2.5 | 6.7 9/16 | 7x19 | 4.2 | 3.1 | 8.4 5/8 | 7x19 | 5.2 | 3.9 | 10.0 3/4 | 7x19 | 7.4 | 5.6 | 15.0 7/8 | 7x19 | 10.0 | 7.5 | 20.0 1 | 7x19 | 13.0 | 9.7 | 26.0 1 1/8 | 7x19 | 16.0 | 12.0 | 32.0 1 1/4 | 7x37 | 18.0 | 14.0 | 37.0 1 3/8 | 7x37 | 22.0 | 16.0 | 44.0 1 1/2 | 7x37 | 26.0 | 19.0 | 52.0 | | | | _____________|________|__________|________|____________________

* These values only apply when the D/d ratio is 5 or greater where:D = Diameter of curvature around which rope is bent.d = Diameter of rope body.

NOTE: Authority cited: Section 142.3, Labor Code. Reference: Section 142.3, Labor Code.

HISTORY

1. New NOTE filed 5-1-87; operative 5-31-87 (Register 87, No. 19).


 TABLE S-12. -- RATED CAPACITIES FOR CABLE LAID GROMMET
                  -- HAND TUCKED


 7x6x7 and 7x6x19 Constructions Improved Plow Steel Grade Rope
     7x7x7 Construction Galvanized Aircraft Grade Rope
_______________________________________________________________
                      |
    Cable body        | Rated capacities, tons (2,000 lb)
______________________|________________________________________
             |        |       |   |
Dia (inches) | Constr | Vertical | Choker | Vertical basket(1)
_____________|________|__________|________|____________________
             |        |          |        |
         3/8 |  7x6x7 |      1.3 |   0.95 |     2.5
        9/16 |  7x6x7 |      2.8 |    2.1 |     5.6
         5/8 |  7x6x7 |      3.8 |    2.8 |     7.6
         3/8 |  7x7x7 |      1.6 |    1.2 |     3.2
        9/16 |  7x7x7 |      3.5 |    2.6 |     6.9
         5/8 |  7x7x7 |      4.5 |    3.4 |     9.0
         5/8 | 7x6x19 |      3.9 |    3.0 |     7.9
         3/4 | 7x6x19 |      5.1 |    3.8 |    10.0
       15/16 | 7x6x19 |      7.9 |    5.9 |    16.0
       1 1/8 | 7x6x19 |     11.0 |    8.4 |    22.0
      1 5/16 | 7x6x19 |     15.0 |   11.0 |    30.0
       1 1/2 | 7x6x19 |     19.0 |   14.0 |    39.0
     1 11/16 | 7x6x19 |     24.0 |   18.0 |    49.0
       1 7/8 | 7x6x19 |     30.0 |   22.0 |    60.0
       2 1/4 | 7x6x19 |     42.0 |   31.0 |    84.0
       2 5/8 | 7x6x19 |     56.0 |   42.0 |   112.0
             |        |          |        |
_____________|________|__________|________|____________________

* These values only apply when the D/d ratio is 5 or greater where: D = Diameter of curvature around which cable body is bent.d = Diameter of cable body.

NOTE: Authority cited: Section 142.3, Labor Code. Reference: Section 142.3, Labor Code.

HISTORY

1. New NOTE filed 5-1-87; operative 5-31-87 (Register 87, No. 19).


TABLE S-13. -- RATED CAPACITIES FOR STRAND LAID
                     ENDLESS SLINGS
                  -- MECHANICAL JOINT

            Improved Plow Steel Grade Rope

_______________________________________________________________
                       |
    Rope body          | Rated capacities, tons (2,000 lb)
_______________________|________________________________________
             |         |       |   |
Dia (inches) |  Constr | Vertical | Choker | Vertical basket(1)
_____________|_________|__________|________|____________________
             |         |          |        |
         1/4 | (2)6x19 |     0.92 |   0.69 |     1.8
         3/8 | (2)6x19 |      2.0 |    1.5 |     4.1
         1/2 | (2)6x19 |      3.6 |    2.7 |     7.2
         5/8 | (2)6x19 |      5.6 |    4.2 |    11.0
         3/4 | (2)6x19 |      8.0 |    6.0 |    16.0
         7/8 | (2)6x19 |     11.0 |    8.1 |    21.0
       1     | (2)6x19 |     14.0 |   10.0 |    28.0
       1 1/8 | (2)6x19 |     18.0 |   13.0 |    35.0
       1 1/4 | (2)6x37 |     21.0 |   15.0 |    41.0
       1 3/8 | (2)6x37 |     25.0 |   19.0 |    50.0
       1 1/2 | (2)6x37 |     29.0 |   22.0 |    59.0
             |         |          |        |
_____________|_________|__________|________|____________________

* These values only apply when the D/d ratio is 5 or greater where: D = Diameter of curvature around which rope is bent. d = Diameter of rope body.

NOTE: Authority cited: Section 142.3, Labor Code. Reference: Section 142.3, Labor Code.

HISTORY

1. New NOTE filed 5-1-87; operative 5-31-87 (Register 87, No. 19).

TABLE S-14. -- RATED CAPACITIES FOR CABLE LAID
                     ENDLESS SLINGS
                  -- MECHANICAL JOINT


 7x7x7 and 7x7x19 Constructions Galvanized Aircraft Grade Rope
     7x6x19 Construction Improved Plow Steel Grade Rope
__________________________________________________________________
                         |
    Cable body           | Rated capacities, tons (2,000 lb)
_________________________|________________________________________
             |           |       |   |
Dia (inches) |  Constr   | Vertical | Choker | Vertical basket(1)
_____________|___________|__________|________|____________________
             |           |          |        |
         1/4 |     7x7x7 |     0.83 |   0.62 |    1.6
         3/8 |     7x7x7 |      1.8 |    1.3 |    3.5
         1/2 |     7x7x7 |      3.0 |    2.3 |    6.1
         5/8 |     7x7x7 |      4.5 |    3.4 |    9.1
         3/4 |     7x7x7 |      6.3 |    4.7 |   12.0
         5/8 |    7x7x19 |      4.7 |    3.5 |    9.5
         3/4 |    7x7x19 |      6.7 |    5.0 |   13.0
         7/8 |    7x7x19 |      8.9 |    6.6 |   18.0
       1     |    7x7x19 |     11.0 |    8.5 |   22.0
       1 1/8 |    7x7x19 |     14.0 |   10.0 |   28.0
       1 1/4 |    7x7x19 |     17.0 |   12.0 |   33.0
         3/4 | (2)7x6x19 |      6.2 |    4.7 |   12.0
         7/8 | (2)7x6x19 |      8.3 |    6.2 |   16.0
       1     | (2)7x6x19 |     10.0 |    7.9 |   21.0
       1 1/8 | (2)7x6x19 |     13.0 |    9.7 |   26.0
       1 1/4 | (2)7x6x19 |     16.0 |   12.0 |   31.0
       1 3/8 | (2)7x6x19 |     18.0 |   14.0 |   37.0
       1 1/2 | (2)7x6x19 |     22.0 |   16.0 |   43.0
_____________|___________|__

* These values only apply when the D/d value is 5 or greater where:D = Diameter of curvature around which cable body is bent.d = Diameter of cable body.

NOTE: Authority cited: Section 142.3, Labor Code. Reference: Section 142.3, Labor Code.

HISTORY

1. New NOTE filed 5-1-87; operative 5-31-87 (Register 87, No. 19).

Table S-15
Type Classification Designation
Heavy Duty Carbon Steel
Stainless Steel
35-CS
35-SS
Medium Duty Carbon Steel
Stainless Steel
43-CS
43-SS
Light Duty Carbon Steel
Stainless Steel
59-CS
59-SS

NOTE: Authority cited: Section 142.3, Labor Code. Reference: Section 142.3, Labor Code.

HISTORY

1. New NOTE filed 5-1-87; operative 5-31-87 (Register 87, No. 19).

Table S-16
Fabric Construction
  Heavy Duty Medium Duty Light Duty
Nominal Spiral Turns per foot of
Sling Width
35 43 59

Spiral Wire Size
    USSWG

10 Ga.
(0.135 in.)
12 Ga.
(0.103 in.)
14 Ga.
(0.080 in.)
Nominal Cross Rods per foot of
Fabric Lenght
21 30 38
Size of Cross Rods
   USSWG
10 Ga.
(0.135 in.)
12 Ga.
(0.103 in.)
14 Ga.
(0.080 in.)
Nominal Fabric Thinkness 1/2 in. 3/8 in. 3/16 in.

NOTE: Authority cited: Section 142.3, Labor Code. Reference: Section 142.3, Labor Code.

HISTORY

1. New NOTE filed 5-1-87; operative 5-31-87 (Register 87, No. 19).


Table S-17

Rated Capacities (Lb) Carbon Steel and Stainless Steel Metal Mesh Slings




                          35--CS and 35--SS
 _____________________________________________________________________
         2 |    1,500 |    3,000 |     2,600 |     2,100 |     1,500
         3 |    2,700 |    5,400 |     4,700 |     3,800 |     2,700
         4 |    4,000 |    8,000 |     6,900 |     5,600 |     4,000
         6 |    6,000 |   12,000 |    10,400 |     8,400 |     6,000
         8 |    8,000 |   16,000 |    13,800 |    11,300 |     8,000
        10 |   10,000 |   20,000 |    17,000 |    14,100 |    10,000
        12 |   12,000 |   24,000 |    20,700 |    16,900 |    12,000
        14 |   14,000 |   28,000 |    24,200 |    19,700 |    14,000
        16 |   16,000 |   32,000 |    27,700 |    22,600 |    16,000
        18 |   18,000 |   36,000 |    31,100 |    25,400 |    18,000
        20 |   20,000 |   40,000 |    34,600 |    28,200 |    20,000
___________|__________|__________|___________|_________




                           43--CS and 43--SS

         2 |    1,350 |    2,700 |     2,300 |     1,900 |     1,400
         3 |    2,000 |    4,000 |     3,500 |     2,800 |     2,000
         4 |    2,700 |    5,400 |     4,700 |     3,800 |     2,700
         6 |    4,500 |    9,000 |     7,800 |     6,400 |     4,500
         8 |    6,000 |   12,000 |    10,400 |     8,500 |     6,000
        10 |    7,500 |   15,000 |    13,000 |    10,600 |     7,500
        12 |    9,000 |   18,000 |    15,600 |    12,700 |     9,000
        14 |   10,500 |   21,000 |    18,200 |    14,800 |    10,500
        16 |   12,000 |   24,000 |    20,800 |    17,000 |    12,000
        18 |   13,500 |   27,000 |    23,400 |    19,100 |    13,500
        20 |   15,000 |   30,000 |    26,000 |    21,200 |    15,000
___________|__________|__________|___________|___________|___________


                             59--CS and 59--SS

         2 |      900 |    1,800 |     1,600 |     1,300 |       900
         3 |    1,400 |    2,800 |     2,400 |     2,000 |     1,400
         4 |    2,000 |    4,000 |     3,500 |     2,800 |     2,000
         6 |    3,000 |    6,000 |     5,200 |     4,200 |     3,000
         8 |    4,000 |    8,000 |     6,900 |     5,700 |     4,000
        10 |    5,000 |   10,000 |     8,600 |     7,100 |     5,000
        12 |    6,000 |   12,000 |    10,400 |     8,500 |     6,000
        14 |    7,000 |   14,000 |    12,100 |     9,900 |     7,000
        16 |    8,000 |   16,000 |    13,900 |    11,300 |     8,000
        18 |    9,000 |   18,000 |    15,600 |    12,700 |     9,000
        20 |   10,000 |   20,000 |    17,300 |    14,100 |    10,000
___________|__________|__________|___________|___________|___________



See tables S-15 and S-16 for designation and fabric construction.

    Note: Authority cited: Section 142.3, Labor Code. Reference: Section 142.3, Labor Code.


 HISTORY

1. New Note filed 5-1-87; operative 5-31-87 (Register 87, No. 19).

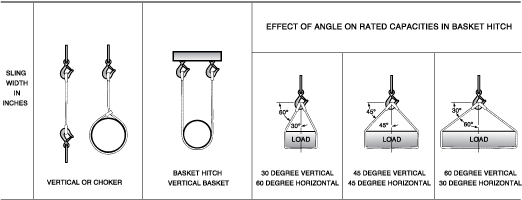

2. Change without regulatory effect providing more legible illustration for
Table S-17 filed 3-2-2009 pursuant to
section 100, title 1, California Codeof Regulations (Register 2009, No. 10).

                     Table S-18 Manila Rope Slings
_____________________________________________________________________
       |       |
       |       |         Eye and eye sling
       |       |_____________________________________________________
       |       |        |       |
Rope   |Nominal|        |       |
dia.   |wt. per|        |       | Basket hitch; Angel of rope to
nominal|100 ft |Vertical|Choker |          horizontal
in     | in    | hitch  | hitch |____________________________________
inches |pounds |        |       |        |        |        |
       |       |        |       | 90 deg | 60 deg | 45 deg | 30 deg
       |       |        |       | (0 deg)|(30 deg)|(45 deg)|(60 deg)
_______|_______|________|_______|________|________|________|_________
       |       |        |       |        |        |        |
   1/2 |   7.5 |    480 |   240 |    960 |    830 |    680 |   480
  9/16 |  10.4 |    620 |   310 |  1,240 |  1,070 |    875 |   620
   5/8 |  13.3 |    790 |   395 |  1,580 |  1,370 |  1,120 |   790
   3/4 |  16.7 |    970 |   485 |  1,940 |  1,680 |  1,370 |   970

 13/16 |  19.5 |  1,170 |   585 |  2,340 |  2,030 |  1,650 | 1,170
   7/8 |  22.5 |  1,390 |   695 |  2,780 |  2,410 |  1,970 | 1,390
     1 |  27.0 |  1,620 |   810 |  3,240 |  2,810 |  2,290 | 1,620
1 1/16 |  31.3 |  1,890 |   945 |  3,780 |  3,270 |  2,670 | 1,890

 1 1/8 |  36.0 |  2,160 | 1,080 |  4,320 |  3,740 |  3,050 | 2,160

 1 1/4 |  41.7 |  2,430 | 1,220 |  4,860 |  4,210 |  3,440 | 2,430
1 5/16 |  47.9 |  2,700 | 1,350 |  5,400 |  4,680 |  3,820 | 2,700

 1 1/2 |  59.9 |  3,330 | 1,670 |  6,660 |  5,770 |  4,710 | 3,330

 1 5/8 |  74.6 |  4,050 | 2,030 |  8,100 |  7,010 |  5,730 | 4,050

 1 3/4 |  89.3 |  4,770 | 2,390 |  9,540 |  8,260 |  6,740 | 4,770
     2 | 107.5 |  5,580 | 2,790 | 11,200 |  9,660 |  7,890 | 5,580

 2 1/8 | 125.0 |  6,480 | 3,240 | 13,000 | 11,200 |  9,160 | 6,480

 2 1/4 | 146.0 |  7,380 | 3,690 | 14,800 | 12,800 | 10,400 | 7,380

 2 1/2 | 166.7 |  8,370 | 4,190 | 16,700 | 14,500 | 11,800 | 8,370

 2 5/8 | 190.8 |  9,360 | 4,680 | 18,700 | 16,200 | 13,200 | 9,360
_______|_______|________|_______|________|________|________|_______


               TABLE S-18. -- MANILA ROPE SLINGS
                         [Continued]
___________________________________________________________________
       |       |
       |       |         Endless sling
       |       |_____________________________________________________
       |       |        |       |
Rope   |Nominal|        |       |
dia.   |wt. per|        |       | Basket hitch; Angel of rope to
nominal|100 ft |Vertical|Choker |          horizontal
in     | in    | hitch  | hitch |____________________________________
inches |pounds |        |       |        |        |        |
       |       |        |       | 90 deg | 60 deg | 45 deg | 30 deg
       |       |        |       | (0 deg)|(30 deg)|(45 deg)|(60 deg)
_______|_______|________|_______|________|________|________|_________
       |       |        |       |        |        |        |
   1/2 |   7.5 |    865 |   430 |  1,730 |  1,500 |  1,220 |    865
  9/16 |  10.4 |  1,120 |   560 |  2,230 |  1,930 |  1,580 |  1,120
   5/8 |  13.3 |  1,420 |   710 |  2,840 |  2,460 |  2,010 |  1,420
   3/4 |  16.7 |  1,750 |   875 |  3,490 |  3,020 |  2,470 |  1,750

 13/16 |  19.5 |  2,110 | 1,050 |  4,210 |  3,650 |  2,980 |  2,110
   7/8 |  22.5 |  2,500 | 1,250 |  5,000 |  4,330 |  3,540 |  2,500
     1 |  27.0 |  2,920 | 1,460 |  5,830 |  5,050 |  4,120 |  2,920
1 1/16 |  31.3 |  3,400 | 1,700 |  6,800 |  5,890 |  4,810 |  3,400

 1 1/8 |  36.0 |  3,890 | 1,940 |  7,780 |  6,730 |  5,500 |  3,890

 1 1/4 |  41.7 |  4,370 | 2,190 |  8,750 |  7,580 |  6,190 |  4,370
1 5/16 |  47.9 |  4,860 | 2,430 |  9,720 |  8,420 |  6,870 |  4,860

 1 1/2 |  59.9 |  5,990 | 3,000 | 12,000 | 10,400 |  8,480 |  5,990

 1 5/8 |  74.6 |  7,290 | 3,650 | 14,600 | 12,600 | 10,300 |  7,290

 1 3/4 |  89.3 |  8,590 | 4,290 | 17,200 | 14,900 | 12,100 |  8,590
     2 | 107.5 | 10,000 | 5,020 | 20,100 | 17,400 | 14,200 | 10,000

 2 1/8 | 125.0 | 11,700 | 5,830 | 23,300 | 20,200 | 16,500 | 11,700

 2 1/4 | 146.0 | 13,300 | 6,640 | 26,600 | 23,000 | 18,800 | 13,300

 2 1/2 | 166.7 | 15,100 | 7,530 | 30,100 | 26,100 | 21,300 | 15,100

 2 5/8 | 190.8 | 16,800 | 8,420 | 33,700 | 29,200 | 23,800 | 16,800
_______|_______|________|_______|________|________|________|________


NOTE: Authority cited: Section 142.3, Labor Code. Reference: Section 142.3, Labor Code.

HISTORY

1. New NOTE filed 5-1-87; operative 5-31-87 (Register 87, No. 19).



                      Table S-19 Nylon Rope Slings
 _____________________________________________________________________
       |       |
       |       |         Eye and eye sling
       |       |_____________________________________________________
       |       |        |       |
Rope   |Nominal|        |       |
dia.   |wt. per|        |       | Basket hitch; Angel of rope to
nominal|100 ft |Vertical|Choker |          horizontal
in     | in    | hitch  | hitch |____________________________________
inches |pounds |        |       |        |        |        |
       |       |        |       | 90 deg | 60 deg | 45 deg | 30 deg
       |       |        |       | (0 deg)|(30 deg)|(45 deg)|(60 deg)
_______|_______|________|_______|________|________|________|_________
       |       |        |       |        |        |        |
   1/2 |   6.5 |    635 |   320 |  1,270 |  1,100 |    900 |    635
  9/16 |   8.3 |    790 |   395 |  1,580 |  1,370 |  1,120 |    790
   5/8 |  10.5 |  1,030 |   515 |  2,060 |  1,780 |  1,460 |  1,030
   3/4 |  14.5 |  1,410 |   705 |  2,820 |  2,440 |  1,990 |  1,410

 13/16 |  17.0 |  1,680 |   840 |  3,360 |  2,910 |  2,380 |  1,680
   7/8 |  20.0 |  1,980 |   990 |  3,960 |  3,430 |  2,800 |  1,980
     1 |  26.0 |  2,480 | 1,240 |  4,960 |  4,300 |  3,510 |  2,480
1 1/16 |  29.0 |  2,850 | 1,430 |  5,700 |  4,940 |  4,030 |  2,850

 1 1/8 |  34.0 |  3,270 | 1,640 |  6,540 |  5,660 |  4,620 |  3,270

 1 1/4 |  40.0 |  3,710 | 1,860 |  7,420 |  6,430 |  5,250 |  3,710
1 5/16 |  45.0 |  4,260 | 2,130 |  8,520 |  7,380 |  6,020 |  4,260

 1 1/2 |  55.0 |  5,250 | 2,630 | 10,500 |  9,090 |  7,420 |  5,250

 1 5/8 |  68.0 |  6,440 | 3,220 | 12,900 | 11,200 |  9,110 |  6,440

 1 3/4 |  83.0 |  7,720 | 3,860 | 15,400 | 13,400 | 10,900 |  7,720
     2 |  95.0 |  9,110 | 4,560 | 18,200 | 15,800 | 12,900 |  9,110

 2 1/8 | 109.0 | 10,500 | 5,250 | 21,000 | 18,200 | 14,800 | 10,500

 2 1/4 | 129.0 | 12,400 | 6,200 | 24,800 | 21,500 | 17,500 | 12,400

 2 1/2 | 149.0 | 13,900 | 6,950 | 27,800 | 24,100 | 19,700 | 13,900

 2 5/8 | 168.0 | 16,000 | 8,000 | 32,000 | 27,700 | 22,600 | 16,000
_______|_______|________|_______|________|________|________|_________


           TABLE S-19. -- NYLON ROPE SLINGS
                    [Continued]

     [Angle of rope to vertical shown in parentheses]
_____________________________________________________________________
       |       |
       |       |         Endless sling
       |       |_____________________________________________________
       |       |        |        |
Rope   |Nominal|        |        |
dia.   |wt. per|        |        | Basket hitch; Angel of rope to
nominal|100 ft |Vertical| Choker |          horizontal
in     | in    | hitch  |  hitch |___________________________________
inches |pounds |        |        |        |        |        |
       |       |        |        | 90 deg | 60 deg | 45 deg | 30 deg
       |       |        |        | (0 deg)|(30 deg)|(45 deg)|(60 deg)
_______|_______|________|________|________|________|________|________
       |       |        |        |        |        |        |
   1/2 |   6.5 |  1,140 |    570 |  2,290 |  1,980 |  1,620 |  1,140
  9/16 |   8.3 |  1,420 |    710 |  2,840 |  2,460 |  2,010 |  1.420
   5/8 |  10.5 |  1,850 |    925 |  3,710 |  3,210 |  2,620 |  1,850
   3/4 |  14.5 |  2,540 |  1,270 |  5,080 |  4,400 |  3,590 |  2,540

 13/16 |  17.0 |  3,020 |  1,510 |  6,050 |  5,240 |  4,280 |  3,020
   7/8 |  20.0 |  3,560 |  1,780 |  7,130 |  6,170 |  5,040 |  3,560
     1 |  26.0 |  4,460 |  2,230 |  8,930 |  7,730 |  6,310 |  4,460
1 1/16 |  29.0 |  5,130 |  2,570 | 10,300 |  8,890 |  7,260 |  5,130

 1 1/8 |  34.0 |  5,890 |  2,940 | 11,800 | 10,200 |  8,330 |  5,890

 1 1/4 |  40.0 |  6,680 |  3,340 | 13,400 | 11,600 |  9,450 |  6,680
1 5/16 |  45.0 |  7,670 |  3,830 | 15,300 | 13,300 | 10,800 |  7,670

 1 1/2 |  55.0 |  9,450 |  4,730 | 18,900 | 16,400 | 13,400 |  9,450

 1 5/8 |  68.0 | 11,600 |  5,800 | 23,200 | 20,100 | 16,400 | 11,600

 1 3/4 |  83.0 | 13,900 |  6,950 | 27,800 | 24,100 | 19,700 | 13,900
     2 |  95.0 | 16,400 |  8,200 | 32,800 | 28,400 | 23,200 | 16,400

 2 1/8 | 109.0 | 18,900 |  9,450 | 37,800 | 32,700 | 26,700 | 18,900

 2 1/4 | 129.0 | 22,300 | 11,200 | 44,600 | 38,700 | 31,600 | 22,300

 2 1/2 | 149.0 | 25,000 | 12,500 | 50,000 | 43,300 | 35,400 | 25,000

 2 5/8 | 168.0 | 28,800 | 14,400 | 57,600 | 49,900 | 40,700 | 28,800
_______|_______|________|________|________|________|________|______

NOTE: Authority cited: Section 142.3, Labor Code. Reference: Section 142.3, Labor Code.

HISTORY

1. New NOTE filed 5-1-87; operative 5-31-87 (Register 87, No. 19).


                     Table S-20 Polyester Rope Slings
 ____________________________________________________________________
       |       |
       |       |         Eye and eye sling
       |       |_____________________________________________________
       |       |        |       |
Rope   |Nominal|        |       |
dia.   |wt. per|        |       | Basket hitch; Angel of rope to
nominal|100 ft |Vertical| Choker|          horizontal
in     | in    | hitch  | hitch |____________________________________
inches |pounds |        |       |        |        |        |
       |       |        |       | 90 deg | 60 deg | 45 deg | 30 deg
       |       |        |       | (0 deg)|(30 deg)|(45 deg)|(60 deg)
_______|_______|________|_______|________|________|________|_________
       |       |        |       |        |        |        |
   1/2 |   8.0 |    635 |   320 |  1,270 |  1,100 |    900 |    635
  9/16 |  10.2 |    790 |   395 |  1,580 |  1,370 |  1,120 |    790
   5/8 |  13.0 |    990 |   495 |  1,980 |  1,710 |  1,400 |    990
   3/4 |  17.5 |  1,240 |   620 |  2,480 |  2,150 |  1,750 |  1,240

 13/16 |  21.0 |  1,540 |   770 |  3,080 |  2,670 |  2,180 |  1,540
   7/8 |  25.0 |  1,780 |   890 |  3,560 |  3,080 |  2,520 |  1,780
     1 |  30.5 |  2,180 | 1,090 |  4,360 |  3,780 |  3,080 |  2,180
1 1/16 |  34.5 |  2,530 | 1,270 |  5,060 |  4,380 |  3,580 |  2,530

 1 1/8 |  40.0 |  2,920 | 1,460 |  5,840 |  5,060 |  4,130 |  2,920

 1 1/4 |  46.3 |  3,290 | 1,650 |  6,580 |  5,700 |  4,650 |  3,290
1 5/16 |  52.5 |  3,710 | 1,860 |  7,420 |  6,430 |  5,250 |  3,710

 1 1/2 |  66.8 |  4,630 | 2,320 |  9,260 |  8,020 |  6,550 |  4,630

 1 5/8 |  82.0 |  5,640 | 2,820 | 11,300 |  9,770 |  7,980 |  5,640

 1 3/4 |  98.0 |  6,710 | 3,360 | 13,400 | 11,600 |  9,490 |  6,710
     2 | 118.0 |  7,920 | 3,960 | 15,800 | 13,700 | 11,200 |  7,920

 2 1/8 | 135.0 |  9,110 | 4,460 | 18,200 | 15,800 | 12,900 |  9,110

 2 1/4 | 157.0 | 10,600 | 5,300 | 21,200 | 18,400 | 15,000 | 10,600

 2 1/2 | 181.0 | 12,100 | 6,050 | 24,200 | 21,000 | 17,100 | 12,100

 2 5/8 | 205.0 | 13,600 | 6,800 | 27,200 | 23,600 | 19,200 | 13,600
_______|_______|________|_______|________|________|________|_______


           TABLE S-20. -- POLYESTER ROPE SLINGS
                    [Continued]

     [Angle of rope to vertical shown in parentheses]

_____________________________________________________________________
       |       |
       |       |         Endless sling
       |       |_____________________________________________________
       |       |        |        |
Rope   |Nominal|        |        |
dia.   |wt. per|        |        | Basket hitch; Angel of rope to
nominal|100 ft |Vertical| Choker |          horizontal
in     | in    | hitch  |  hitch |___________________________________
inches |pounds |        |        |        |        |        |
       |       |        |        | 90 deg | 60 deg | 45 deg | 30 deg
       |       |        |        | (0 deg)|(30 deg)|(45 deg)|(60 deg)
_______|_______|________|________|________|________|________|________
       |       |        |        |        |        |        |
   1/2 |   8.0 |  1,140 |    570 |  2,290 |  1,980 |  1,620 |  1,140
  9/16 |  10.2 |  1,420 |    710 |  2,840 |  2,460 |  2,010 |  1,420
   5/8 |  13.0 |  1,780 |    890 |  3,570 |  3,090 |  2,520 |  1,780
   3/4 |  17.5 |  2,230 |  1,120 |  4,470 |  3,870 |  3,160 |  2,230

 13/16 |  21.0 |  2,770 |  1,390 |  5,540 |  4,800 |  3,920 |  2,770
   7/8 |  25.0 |  3,200 |  1,600 |  6,410 |  5,550 |  4,530 |  3,200
     1 |  30.5 |  3,920 |  2,960 |  7,850 |  6,800 |  5,550 |  3,920
1 1/16 |  34.5 |  4,550 |  2,280 |  9,110 |  7,990 |  6,440 |  4,550

 1 1/8 |  40.0 |  5,260 |  2,630 | 10,500 |  9,100 |  7,440 |  5,260

 1 1/4 |  46.3 |  5,920 |  2,960 | 11,800 | 10,300 |  8,380 |  5,920
1 5/16 |  52.5 |  6,680 |  3,340 | 13,400 | 11,600 |  9,450 |  6,680

 1 1/2 |  66.8 |  8,330 |  4,170 | 16,700 | 14,400 | 11,800 |  8,330

 1 5/8 |  82.0 | 10,200 |  5,080 | 20,300 | 17,600 | 14,400 | 10,200

 1 3/4 |  98.0 | 12,100 |  6,040 | 24,200 | 20,900 | 17,100 | 12,100
     2 | 118.0 | 14,300 |  7,130 | 28,500 | 24,700 | 20,200 | 14,300

 2 1/8 | 135.0 | 16,400 |  8,200 | 32,800 | 28,400 | 23,200 | 16,400

 2 1/4 | 157.0 | 19,100 |  9,540 | 38,200 | 33,100 | 27,000 | 19,100

 2 1/2 | 181.0 | 21,800 | 10,900 | 43,600 | 37,700 | 30,800 | 21,800

 2 5/8 | 205.0 | 24,500 | 12,200 | 49,000 | 42,400 | 34,600 | 24,500
_______|_______|________|________|________|________|________|________


NOTE: Authority cited: Section 142.3, Labor Code. Reference: Section 142.3, Labor Code.

HISTORY

1. New NOTE filed 5-1-87; operative 5-31-87 (Register 87, No. 19).



                    Table S-21 Polypropylene Rope Slings

_____________________________________________________________________
       |       |
       |       |         Eye and eye sling
       |       |_____________________________________________________
       |       |        |       |
Rope   |Nominal|        |       |
dia.   |wt. per|        |       | Basket hitch; Angel of rope to
nominal|100 ft |Vertical|Choker |          horizontal
in     | in    | hitch  | hitch |____________________________________
inches |pounds |        |       |        |        |        |
       |       |        |       | 90 deg | 60 deg | 45 deg | 30 deg
       |       |        |       | (0 deg)|(30 deg)|(45 deg)|(60 deg)
_______|_______|________|_______|________|________|________|_________
       |       |        |       |        |        |        |
   1/2 |   4.7 |    645 |   325 |  1,290 |  1,120 |    910 |    645
  9/16 |   6.1 |    780 |   390 |  1,560 |  1,350 |  1,100 |    780
   5/8 |   7.5 |    950 |   475 |  1,900 |  1,650 |  1,340 |    950
   3/4 |  10.7 |  1,300 |   650 |  2,600 |  2,250 |  1,840 |  1,300

 13/16 |  12.7 |  1,520 |   760 |  3,040 |  2,630 |  2,150 |  1,520
   7/8 |  15.0 |  1,760 |   880 |  3,520 |  3,050 |  2,490 |  1,760
     1 |  18.0 |  2,140 | 1,070 |  4,280 |  3,700 |  3,030 |  2,140
1 1/16 |  20.4 |  2,450 | 1,230 |  4,900 |  4,240 |  3,460 |  2,450

 1 1/8 |  23.7 |  2,800 | 1,400 |  5,600 |  4,850 |  3,960 |  2,800

 1 1/4 |  27.0 |  3,210 | 1,610 |  6,420 |  5,560 |  4,540 |  3,210
1 5/16 |  30.5 |  3,600 | 1,800 |  7,200 |  6,240 |  5,090 |  3,600

 1 1/2 |  38.5 |  4,540 | 2,270 |  9,080 |  7,860 |  6,420 |  4,540

 1 5/8 |  47.5 |  5,510 | 2,760 | 11,000 |  9,540 |  7,790 |  5,510

 1 3/4 |  57.0 |  6,580 | 3,290 | 13,200 | 11,400 |  9,300 |  6,580
     2 |  69.0 |  7,960 | 3,980 | 15,900 | 13,800 | 11,300 |  7,960

 2 1/8 |  80.0 |  9,330 | 4,670 | 18,700 | 16,200 | 13,200 |  9,330

 2 1/4 |  92.0 | 10,600 | 5,300 | 21,200 | 18,400 | 15,000 | 10,600

 2 1/2 | 107.0 | 12,200 | 6,100 | 24,400 | 21,100 | 17,300 | 12,200

 2 5/8 | 120.0 | 13,800 | 6,900 | 27,600 | 23,900 | 19,600 | 13,800
_______|_______|________|_______|________|________|________|________


           TABLE S-21. -- POLYPROPYLENE ROPE SLINGS
                    [Continued]

     [Angle of rope to vertical shown in parentheses]

_____________________________________________________________________
       |       |
       |       |         Endless sling
       |       |_____________________________________________________
       |       |        |        |
Rope   |Nominal|        |        |
dia.   |wt. per|        |        | Basket hitch; Angel of rope to
nominal|100 ft |Vertical| Choker |          horizontal
in     | in    | hitch  |  hitch |___________________________________
inches |pounds |        |        |        |        |        |
       |       |        |        | 90 deg | 60 deg | 45 deg | 30 deg
       |       |        |        | (0 deg)|(30 deg)|(45 deg)|(60 deg)
_______|_______|________|________|________|________|________|________
       |       |        |        |        |        |        |
   1/2 |   4.7 |  1,160 |    580 |  2,320 |  2,010 |  1,640 |  1,160
  9/16 |   6.1 |  1,400 |    700 |  2,810 |  2,430 |  1,990 |  1,400
   5/8 |   7.5 |  1,710 |    855 |  3,420 |  2,960 |  2,420 |  1,710
   3/4 |  10.7 |  2,340 |  1,170 |  4,680 |  4,050 |  3,310 |  2,340

 13/16 |  12.7 |  2,740 |  1,370 |  5,470 |  4,740 |  3,870 |  2,740
   7/8 |  15.0 |  3,170 |  1,580 |  6,340 |  5,490 |  4,480 |  3,170
     1 |  18.0 |  3,850 |  1,930 |  7,700 |  6,670 |  5,450 |  3,860
1 1/16 |  20.4 |  4,410 |  2,210 |  8,820 |  7,640 |  6,240 |  4,410

 1 1/8 |  23.7 |  5,040 |  2,520 | 10,100 |  8,730 |  7,130 |  5,040

 1 1/4 |  27.0 |  5,780 |  2,890 | 11,600 | 10,000 |  8,170 |  5,780
1 5/16 |  30.5 |  6,480 |  3,240 | 13,000 | 11,200 |  9,170 |  6,480

 1 1/2 |  38.5 |  8,170 |  4,090 | 16,300 | 14,200 | 11,600 |  8,170

 1 5/8 |  47.5 |  9,920 |  4,960 | 19,800 | 17,200 | 14,000 |  9,920

 1 3/4 |  57.0 | 11,800 |  5,920 | 23,700 | 20,500 | 16,800 | 11,800
     2 |  69.0 | 14,300 |  7,160 | 28,700 | 24,800 | 20,300 | 14,300

 2 1/8 |  80.0 | 16,800 |  8,400 | 33,600 | 29,100 | 23,800 | 16,800

 2 1/4 |  92.0 | 19,100 |  9,540 | 38,200 | 33,100 | 27,000 | 19,100

 2 1/2 | 107.0 | 22,000 | 11,000 | 43,900 | 38,000 | 31,100 | 22,000

 2 5/8 | 120.0 | 24,800 | 12,400 | 49,700 | 43,000 | 35,100 | 24,800
_______|_______|________|________|________|________|________|_______

NOTE: Authority cited: Section 142.3, Labor Code. Reference: Section 142.3, Labor Code.

HISTORY

1. New NOTE filed 5-1-87; operative 5-31-87 (Register 87, No. 19).


                              Table S-22

Rated Capacity in Pounds Synthetic Web Slings 1,000 Lbs. Per Inch of Width Single Ply

        |
 Sling  | Triangle -- Choker slings, type I: Triangle -- Triangle
 body   | slings, type II: Eye and eye with flat eye slings, type
 width, | III: Eye and eye with twisted eye slings, type IV
 inches |__________________________________________________________
        |       |        |        |         |         |
        | Vert. | Choker | Vert.  | 30 deg. | 45 deg. | 60 deg.
        |       |        | basket | basket  | basket  | basket
________|_______|________|________|_________|_________|____________
        |       |        |        |         |         |
1.......| 1,000 |    750 |  2,000 |   1,700 |   1,400 | 1,000
2.......| 2,000 |  1,500 |  4,000 |   3,500 |   2,800 | 2,000
3.......| 3,000 |  2,200 |  6,000 |   5,200 |   4,200 | 3,000
4.......| 4,000 |  3,000 |  8,000 |   6,900 |   5,700 | 4,000
5.......| 5,000 |  3,700 | 10,000 |   8,700 |   7,100 | 5,000
6.......| 6,000 |  4,500 | 12,000 |  10,400 |   8,500 | 6,000
________|_______|________|________|_________|_________|____________


  TABLE S-22. -- SYNTHETIC WEB SLINGS
                  -- 1,000 Pounds per Inch of Width
                  -- Single-Ply

            [Rated capacity in pounds]

              (Continued)
___________________________________________________________________
        |
 Sling  |              Endless slings, type V
 body   |__________________________________________________________
 width, |       |        |        |         |         |
 inches | Vert. | Choker | Vert.  | 30 deg. | 45 deg. | 60 deg.
        |       |        | basket | basket  | basket  | basket
________|_______|________|________|_________|_________|____________
        |       |        |        |         |         |
1.......| 1,600 |  1,300 |  3,200 |   2,800 |   2,300 |  1,600
2.......| 3,200 |  2,600 |  6,400 |   5,500 |   4,500 |  3,200
3.......| 4,800 |  3,800 |  9,600 |   8,300 |   6,800 |  4,800
4.......| 6,400 |  5,100 | 12,800 |  11,100 |   9,000 |  6,400
5.......| 8,000 |  6,400 | 16,000 |  13,900 |  11,300 |  8,000
6.......| 9,600 |  7,700 | 19,200 |  16,600 |  13,600 |  9,600
________|_______|________|________|_________|_________|____________


  TABLE S-22. -- SYNTHETIC WEB SLINGS
                  -- 1,000 Pounds per Inch of Width
                  -- Single-Ply

            [Rated capacity in pounds]

              (Continued)
________________________________________________________________
        |
 Sling  |              Return eye slings, type VI
 body   |_______________________________________________________
 width, |       |        |        |         |         |
 inches | Vert. | Choker | Vert.  | 30 deg. | 45 deg. | 60 deg.
        |       |        | basket | basket  | basket  | basket
________|_______|________|________|_________|_________|_________
        |       |        |        |         |         |
1.......|   800 |    650 |  1,600 |   1,400 |   1,150 |   800
2.......| 1,600 |  1,300 |  3,200 |   2,800 |   2,300 | 1,600
3.......| 2,400 |  1,950 |  4,800 |   4,150 |   3,400 | 2,400
4.......| 3,200 |  2,600 |  6,400 |   5,500 |   4,500 | 3,200
5.......| 4,000 |  3,250 |  8,000 |   6,900 |   5,650 | 4,000
6.......| 4,800 |  3,800 |  9,600 |   8,300 |   6,800 | 4,800
________|_______|________|________|_________|_________|_________

(1) All angles shown are measured from the vertical.

(2) Capacities for intermediate widths not shown may be obtained by interpolation.

NOTE: Authority cited: Section 142.3, Labor Code. Reference: Section 142.3, Labor Code.

HISTORY

1. New NOTE filed 5-1-87; operative 5-31-87 (Register 87, No. 19).


Table S-23

Rated Capacity in Pounds Synthetic Web Slings 1,200 Lbs. Per Inch of Width Single Ply ___________________________________________________________________ | Sling | Triangle -- Choker slings, type I: Triangle -- Triangle body | slings, type II: Eye and eye with flat eye slings, type width, | III: Eye and eye with twisted eye slings, type IV inches |__________________________________________________________ | | | | | | | Vert. | Choker | Vert. | 30 deg. | 45 deg. | 60 deg. | | | basket | basket | basket | basket ________|_______|________|________|_________|_________|____________ | | | | | | 1.......| 1,200 | 900 | 2,400 | 2,100 | 1,700 | 1,200 2.......| 2,400 | 1,800 | 4,800 | 4,200 | 3,400 | 2,400 3.......| 3,600 | 2,700 | 7,200 | 6,200 | 5,100 | 3,600 4.......| 4,800 | 3,600 | 9,600 | 8,300 | 6,800 | 4,800 5.......| 6,000 | 4,500 | 12,000 | 10,400 | 8,500 | 6,000 6.......| 7,200 | 5,400 | 14,400 | 12,500 | 10,200 | 7,200 ________|_______|________|________|_________|_________|____________ TABLE S-23. -- SYNTHETIC WEB SLINGS -- 1,200 Pounds per Inch of Width -- Single-Ply [Rated capacity in pounds] (Continued) ___________________________________________________________________ | Sling | Endless slings, type V body |__________________________________________________________ width, | | | | | | inches | Vert. | Choker | Vert. | 30 deg. | 45 deg. | 60 deg. | | | basket | basket | basket | basket ________|________|________|________|_________|_________|___________ | | | | | | 1.......| 1,900 | 1,500 | 3,800 | 3,300 | 2,700 | 1,900 2.......| 3,800 | 3,000 | 7,600 | 6,600 | 5,400 | 3,800 3.......| 5,800 | 4,600 | 11,600 | 10,000 | 8,200 | 5,800 4.......| 7,700 | 6,200 | 15,400 | 13,300 | 10,900 | 7,700 5.......| 9,600 | 7,700 | 19,200 | 16,600 | 13,600 | 9,600 6.......| 11,500 | 9,200 | 23,000 | 19,900 | 16,300 | 11,500 ________|________|________|________|_________|_________|___________ TABLE S-23. -- SYNTHETIC WEB SLINGS -- 1,200 Pounds per Inch of Width -- Single-Ply [Rated capacity in pounds] (Continued) ___________________________________________________________________ | Sling | Return eye slings, type VI body |__________________________________________________________ width, | | | | | | inches | Vert. | Choker | Vert. | 30 deg. | 45 deg. | 60 deg. | | | basket | basket | basket | basket ________|_______|________|________|_________|_________|____________ | | | | | | 1.......| 950 | 750 | 1,900 | 1,650 | 1,350 | 950 2.......| 1,900 | 1,500 | 3,800 | 3,300 | 2,700 | 1,900 3.......| 2,850 | 2,250 | 5,700 | 4,950 | 4,050 | 2,850 4.......| 3,800 | 3,000 | 7,600 | 6,600 | 5,400 | 3,800 5.......| 4,750 | 3,750 | 9,500 | 8,250 | 6,750 | 4,750 6.......| 5,800 | 4,600 | 11,600 | 10,000 | 8,200 | 5,800 ________|_______|________|________|_________|_________|____________

(1) All angles shown are measured from the vertical.

(2) Capacities for intermediate widths not shown may be obtained by interpolation.

NOTE: Authority cited: Section 142.3, Labor Code. Reference: Section 142.3, Labor Code.

HISTORY

1. New NOTE filed 5-1-87; operative 5-31-87 (Register 87, No. 19).




Table S-24

Rated Capacity in Pounds Synthetic Web Slings 1,600 Lbs. Per Inch of Width Single Ply ___________________________________________________________________ | Sling | Triangle -- Choker slings, type I: Triangle -- Triangle body | slings, type II: Eye and eye with flat eye slings, type width, | III: Eye and eye with twisted eye slings, type IV inches |__________________________________________________________ | | | | | | | Vert. | Choker | Vert. | 30 deg. | 45 deg. | 60 deg. | | | basket | basket | basket | basket ________|_______|________|________|_________|_________|____________ | | | | | | 1.......| 1,600 | 1,200 | 3,200 | 2,800 | 2,300 | 1,600 2.......| 3,200 | 2,400 | 6,400 | 5,500 | 4,500 | 3,200 3.......| 4,800 | 3,600 | 9,600 | 8,300 | 6,800 | 4,800 4.......| 6,400 | 4,800 | 12,800 | 11,100 | 9,000 | 6,400 5.......| 8,000 | 6,000 | 16,000 | 13,800 | 11,300 | 8,000 6.......| 9,600 | 7,200 | 19,200 | 16,600 | 13,600 | 9,600 ________|_______|________|________|_________|_________|____________ TABLE S-24. -- SYNTHETIC WEB SLINGS -- 1,600 Pounds per Inch of Width -- Single-Ply [Rated capacity in pounds] (Continued) _________________________________________________________________ | Sling | Endless slings, type V body |________________________________________________________ width, | | | | | | inches | Vert. | Choker | Vert. | 30 deg. | 45 deg. | 60 deg. | | | basket | basket | basket | basket ________|________|________|________|_________|_________|_________ | | | | | | 1.......| 2,600 | 2,100 | 5,200 | 4,500 | 3,700 | 2,600 2.......| 5,100 | 4,100 | 10,200 | 8,800 | 7,200 | 5,100 3.......| 7,700 | 6,200 | 15,400 | 13,300 | 10,900 | 7,700 4.......| 10,100 | 8,200 | 20,400 | 17,700 | 14,400 | 10,200 5.......| 12,800 | 10,200 | 25,600 | 22,200 | 18,100 | 12,800 6.......| 15,400 | 12,300 | 30,800 | 26,700 | 21,800 | 15,400 ________|________|________|________|_________|_________|_________ TABLE S-24. -- SYNTHETIC WEB SLINGS -- 1,600 Pounds per Inch of Width -- Single-Ply [Rated capacity in pounds] (Continued) ___________________________________________________________________ | Sling | Return eye slings, type VI body |__________________________________________________________ width, | | | | | | inches | Vert. | Choker | Vert. | 30 deg. | 45 deg. | 60 deg. | | | basket | basket | basket | basket ________|_______|________|________|_________|_________|____________ | | | | | | 1.......| 1,050 | 1,050 | 2,600 | 2,250 | 1,850 | 1,300 2.......| 2,600 | 2,100 | 5,200 | 4,500 | 3,700 | 2,600 3.......| 3,900 | 3,150 | 7,800 | 6,750 | 5,500 | 3,900 4.......| 5,100 | 4,100 | 10,200 | 8,800 | 7,200 | 5,100 5.......| 6,400 | 5,150 | 12,800 | 11,050 | 9,050 | 6,400 6.......| 7,700 | 6,200 | 15,400 | 13,300 | 10,900 | 7,700 ________|_______|________|________|_________|_________|_________

(1) All angles shown are measured from the vertical.

(2) Capacities for intermediate widths not shown may be obtained by interpolation.

NOTE: Authority cited: Section 142.3, Labor Code. Reference: Section 142.3, Labor Code.

HISTORY

1. New NOTE filed 5-1-87; operative 5-31-87 (Register 87, No. 19).



Table S-25

SAFE WORKING LOAD FOR SHACKLES

(IN TONS OF 2000 POUNDS)





Material size
(Inches)
Pin diameter
(Inches)
Safe working load
(Tons)
1/2 1/2 1.4
1/3 3/4 2.2
3/4 1/3 3.2
1/2 1 4.3
1 1 1/8 5.6
1 1/8 1 1/4 6.7
1 1/4 1 3/8 8.2
1 3/8 1 1/2 10.2
1 1/2 1 3/4 11.9
1 3/4 2 18.2
2 2 1/4 21.2

    Note: Authority cited: Section 142.3, Labor Code. Reference: Section 142.3, Labor Code.


 HISTORY

1. New Note filed 5-1-87; operative 5-31-87 (Register 87, No. 19).

2. Change without regulatory effect providing more legible illustration for
Table S-25 filed 3-2-2009 pursuant to
section 100, title 1, California Codeof Regulations (Register 2009, No. 10).

Go BackGo Back to Article 101 Table of Contents
