Subchapter 7. General Industry Safety Orders
Group 8. Points of Operation and Other Hazardous Parts of Machinery
Article 71. Rubber and Composition Working Machines

Return to index
New query

§4584. Stopping Limits--New Mills.

HISTORY

1. Repealer filed 10-25-74; effective thirtieth day thereafter (Register 74, No. 43).

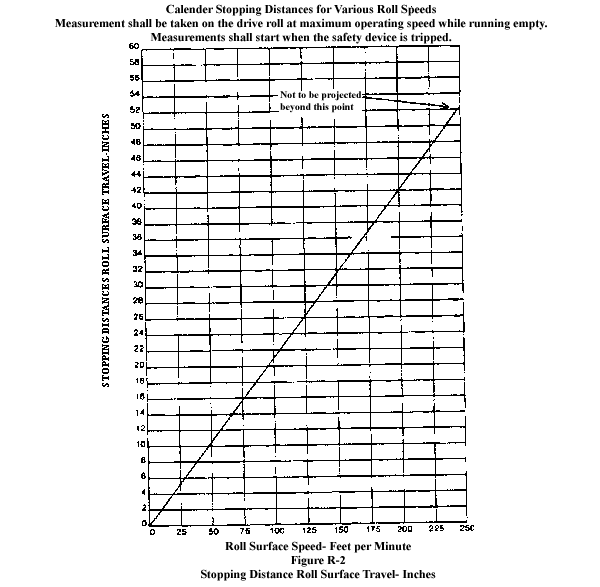

Figure R-2

NOTE: Authority cited: Section 142.3, Labor Code. Reference: Section 142.3, Labor Code.

HISTORY

1. Repealer and new Figure R-2 filed 4-25-86; effective thirtieth day thereafter (Register 86, No. 17).

Mill Stopping Distances for Various Roll Speeds

Measurement shall be taken on the drive roll at maximum operating speed while running empty.

Measurements shall start when the safety device is tripped.

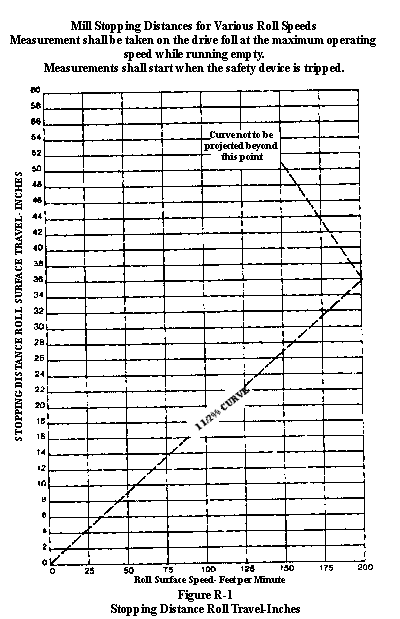

Figure R-1

NOTE: Authority cited: Section 142.3, Labor Code. Reference: Section 142.3, Labor Code.

HISTORY

1. Repealer and new Figure R-1 filed 4-25-86; effective thirtieth day thereafter (Register 86, No. 17).
