Schema EAMSFilingResponse.xsd


attribute form default:  unqualified
element form default:  qualified
targetNamespace:  http://www.dir.ca.gov/dwc/EAMS/PresentTermSolution/Schemas/Payloads/EAMSFilingResponse

Elements  Complex types
EAMSFilingResponse  HeaderSection


attribute form default:  unqualified
element form default:  qualified
targetNamespace:  http://www.dir.ca.gov/dwc/EAMS/PresentTermSolution/Schemas/Common/PayloadFields

Complex types  Simple types
Error  clientUserID
VersionSection  dateSubmitted
environment
errorCode
errorMessage
errorSeverity
errorTimestamp
formSequenceNumber
formShortName
ipAddress
logicalSystem
message
module
packetID
packetType
payloadFormat
payloadSchema
resolutionAdvice
resubmissionID
resubmissionIND
securityToken
serviceNameCode
serviceVersion
testMessgeIND
transactionID
transportProtocol


attribute form default:  unqualified
element form default:  qualified
targetNamespace:  http://www.dir.ca.gov/dwc/EAMS/PresentTermSolution/Schemas/Common/CommonFields

Simple types
caseNumber
checkBox
ptsDate
typeCode1
typeCode3
versionNumber


element EAMSFilingResponse
diagram EAMSFilingResponse_p1.png
namespace http://www.dir.ca.gov/dwc/EAMS/PresentTermSolution/Schemas/Payloads/EAMSFilingResponse
properties
content complex
children HeaderSection Summary
annotation
documentation
Comment describing your root element
source <xs:element name="EAMSFilingResponse">
  <xs:annotation>
    <xs:documentation>Comment describing your root element</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="HeaderSection" type="HeaderSection"/>
      <xs:element name="Summary">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="Transactions">
              <xs:complexType>
                <xs:sequence>
                  <xs:element name="Transaction" maxOccurs="unbounded">
                    <xs:complexType>
                      <xs:sequence>
                        <xs:element name="TransactionID" type="PF:transactionID"/>
                        <xs:element name="DateSubmitted" type="CF:ptsDate"/>
                        <xs:element name="Forms">
                          <xs:complexType>
                            <xs:sequence>
                              <xs:element name="Form" maxOccurs="unbounded">
                                <xs:complexType>
                                  <xs:sequence>
                                    <xs:element name="FormPassed" type="xs:boolean"/>
                                    <xs:element name="FormShortName" type="PF:formShortName"/>
                                    <xs:element name="FormSequenceNumber" type="PF:formSequenceNumber"/>
                                    <xs:element name="FormMessage" type="xs:string"/>
                                    <xs:element name="FiledDate" type="CF:ptsDate" minOccurs="0"/>
                                    <xs:element name="CaseNumber" type="CF:caseNumber" minOccurs="0"/>
                                    <xs:element name="ResubmissionID" type="PF:resubmissionID" minOccurs="0"/>
                                    <xs:element name="ErrorList" minOccurs="0">
                                      <xs:complexType>
                                        <xs:sequence>
                                          <xs:element name="Error" type="PF:Error" minOccurs="0" maxOccurs="unbounded"/>
                                        </xs:sequence>
                                      </xs:complexType>
                                    </xs:element>
                                  </xs:sequence>
                                </xs:complexType>
                              </xs:element>
                            </xs:sequence>
                          </xs:complexType>
                        </xs:element>
                      </xs:sequence>
                    </xs:complexType>
                  </xs:element>
                </xs:sequence>
              </xs:complexType>
            </xs:element>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element EAMSFilingResponse/HeaderSection
diagram EAMSFilingResponse_p2.png
namespace http://www.dir.ca.gov/dwc/EAMS/PresentTermSolution/Schemas/Payloads/EAMSFilingResponse
type HeaderSection
properties
isRef 0
content complex
children VersionNumber ResponseType
source <xs:element name="HeaderSection" type="HeaderSection"/>

element EAMSFilingResponse/Summary
diagram EAMSFilingResponse_p3.png
namespace http://www.dir.ca.gov/dwc/EAMS/PresentTermSolution/Schemas/Payloads/EAMSFilingResponse
properties
isRef 0
content complex
children Transactions
source <xs:element name="Summary">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="Transactions">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="Transaction" maxOccurs="unbounded">
              <xs:complexType>
                <xs:sequence>
                  <xs:element name="TransactionID" type="PF:transactionID"/>
                  <xs:element name="DateSubmitted" type="CF:ptsDate"/>
                  <xs:element name="Forms">
                    <xs:complexType>
                      <xs:sequence>
                        <xs:element name="Form" maxOccurs="unbounded">
                          <xs:complexType>
                            <xs:sequence>
                              <xs:element name="FormPassed" type="xs:boolean"/>
                              <xs:element name="FormShortName" type="PF:formShortName"/>
                              <xs:element name="FormSequenceNumber" type="PF:formSequenceNumber"/>
                              <xs:element name="FormMessage" type="xs:string"/>
                              <xs:element name="FiledDate" type="CF:ptsDate" minOccurs="0"/>
                              <xs:element name="CaseNumber" type="CF:caseNumber" minOccurs="0"/>
                              <xs:element name="ResubmissionID" type="PF:resubmissionID" minOccurs="0"/>
                              <xs:element name="ErrorList" minOccurs="0">
                                <xs:complexType>
                                  <xs:sequence>
                                    <xs:element name="Error" type="PF:Error" minOccurs="0" maxOccurs="unbounded"/>
                                  </xs:sequence>
                                </xs:complexType>
                              </xs:element>
                            </xs:sequence>
                          </xs:complexType>
                        </xs:element>
                      </xs:sequence>
                    </xs:complexType>
                  </xs:element>
                </xs:sequence>
              </xs:complexType>
            </xs:element>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element EAMSFilingResponse/Summary/Transactions
diagram EAMSFilingResponse_p4.png
namespace http://www.dir.ca.gov/dwc/EAMS/PresentTermSolution/Schemas/Payloads/EAMSFilingResponse
properties
isRef 0
content complex
children Transaction
source <xs:element name="Transactions">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="Transaction" maxOccurs="unbounded">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="TransactionID" type="PF:transactionID"/>
            <xs:element name="DateSubmitted" type="CF:ptsDate"/>
            <xs:element name="Forms">
              <xs:complexType>
                <xs:sequence>
                  <xs:element name="Form" maxOccurs="unbounded">
                    <xs:complexType>
                      <xs:sequence>
                        <xs:element name="FormPassed" type="xs:boolean"/>
                        <xs:element name="FormShortName" type="PF:formShortName"/>
                        <xs:element name="FormSequenceNumber" type="PF:formSequenceNumber"/>
                        <xs:element name="FormMessage" type="xs:string"/>
                        <xs:element name="FiledDate" type="CF:ptsDate" minOccurs="0"/>
                        <xs:element name="CaseNumber" type="CF:caseNumber" minOccurs="0"/>
                        <xs:element name="ResubmissionID" type="PF:resubmissionID" minOccurs="0"/>
                        <xs:element name="ErrorList" minOccurs="0">
                          <xs:complexType>
                            <xs:sequence>
                              <xs:element name="Error" type="PF:Error" minOccurs="0" maxOccurs="unbounded"/>
                            </xs:sequence>
                          </xs:complexType>
                        </xs:element>
                      </xs:sequence>
                    </xs:complexType>
                  </xs:element>
                </xs:sequence>
              </xs:complexType>
            </xs:element>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element EAMSFilingResponse/Summary/Transactions/Transaction
diagram EAMSFilingResponse_p5.png
namespace http://www.dir.ca.gov/dwc/EAMS/PresentTermSolution/Schemas/Payloads/EAMSFilingResponse
properties
isRef 0
minOcc 1
maxOcc unbounded
content complex
children TransactionID DateSubmitted Forms
source <xs:element name="Transaction" maxOccurs="unbounded">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="TransactionID" type="PF:transactionID"/>
      <xs:element name="DateSubmitted" type="CF:ptsDate"/>
      <xs:element name="Forms">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="Form" maxOccurs="unbounded">
              <xs:complexType>
                <xs:sequence>
                  <xs:element name="FormPassed" type="xs:boolean"/>
                  <xs:element name="FormShortName" type="PF:formShortName"/>
                  <xs:element name="FormSequenceNumber" type="PF:formSequenceNumber"/>
                  <xs:element name="FormMessage" type="xs:string"/>
                  <xs:element name="FiledDate" type="CF:ptsDate" minOccurs="0"/>
                  <xs:element name="CaseNumber" type="CF:caseNumber" minOccurs="0"/>
                  <xs:element name="ResubmissionID" type="PF:resubmissionID" minOccurs="0"/>
                  <xs:element name="ErrorList" minOccurs="0">
                    <xs:complexType>
                      <xs:sequence>
                        <xs:element name="Error" type="PF:Error" minOccurs="0" maxOccurs="unbounded"/>
                      </xs:sequence>
                    </xs:complexType>
                  </xs:element>
                </xs:sequence>
              </xs:complexType>
            </xs:element>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element EAMSFilingResponse/Summary/Transactions/Transaction/TransactionID
diagram EAMSFilingResponse_p6.png
namespace http://www.dir.ca.gov/dwc/EAMS/PresentTermSolution/Schemas/Payloads/EAMSFilingResponse
type transactionID
properties
isRef 0
content simple
facets
Kind Value annotation
minLength 1
maxLength 256
whiteSpace collapse
source <xs:element name="TransactionID" type="PF:transactionID"/>

element EAMSFilingResponse/Summary/Transactions/Transaction/DateSubmitted
diagram EAMSFilingResponse_p7.png
namespace http://www.dir.ca.gov/dwc/EAMS/PresentTermSolution/Schemas/Payloads/EAMSFilingResponse
type ptsDate
properties
isRef 0
content simple
facets
Kind Value annotation
pattern [0-1][0-9]/[0-3][0-9]/[1-2][0-9][0-9][0-9]
source <xs:element name="DateSubmitted" type="CF:ptsDate"/>

element EAMSFilingResponse/Summary/Transactions/Transaction/Forms
diagram EAMSFilingResponse_p8.png
namespace http://www.dir.ca.gov/dwc/EAMS/PresentTermSolution/Schemas/Payloads/EAMSFilingResponse
properties
isRef 0
content complex
children Form
source <xs:element name="Forms">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="Form" maxOccurs="unbounded">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="FormPassed" type="xs:boolean"/>
            <xs:element name="FormShortName" type="PF:formShortName"/>
            <xs:element name="FormSequenceNumber" type="PF:formSequenceNumber"/>
            <xs:element name="FormMessage" type="xs:string"/>
            <xs:element name="FiledDate" type="CF:ptsDate" minOccurs="0"/>
            <xs:element name="CaseNumber" type="CF:caseNumber" minOccurs="0"/>
            <xs:element name="ResubmissionID" type="PF:resubmissionID" minOccurs="0"/>
            <xs:element name="ErrorList" minOccurs="0">
              <xs:complexType>
                <xs:sequence>
                  <xs:element name="Error" type="PF:Error" minOccurs="0" maxOccurs="unbounded"/>
                </xs:sequence>
              </xs:complexType>
            </xs:element>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

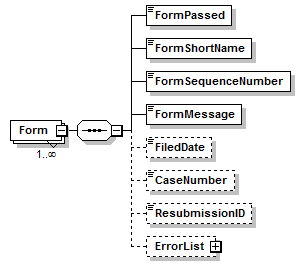

element EAMSFilingResponse/Summary/Transactions/Transaction/Forms/Form
diagram EAMSFilingResponse_p9.png
namespace http://www.dir.ca.gov/dwc/EAMS/PresentTermSolution/Schemas/Payloads/EAMSFilingResponse
properties
isRef 0
minOcc 1
maxOcc unbounded
content complex
children FormPassed FormShortName FormSequenceNumber FormMessage FiledDate CaseNumber ResubmissionID ErrorList
source <xs:element name="Form" maxOccurs="unbounded">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="FormPassed" type="xs:boolean"/>
      <xs:element name="FormShortName" type="PF:formShortName"/>
      <xs:element name="FormSequenceNumber" type="PF:formSequenceNumber"/>
      <xs:element name="FormMessage" type="xs:string"/>
      <xs:element name="FiledDate" type="CF:ptsDate" minOccurs="0"/>
      <xs:element name="CaseNumber" type="CF:caseNumber" minOccurs="0"/>
      <xs:element name="ResubmissionID" type="PF:resubmissionID" minOccurs="0"/>
      <xs:element name="ErrorList" minOccurs="0">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="Error" type="PF:Error" minOccurs="0" maxOccurs="unbounded"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element EAMSFilingResponse/Summary/Transactions/Transaction/Forms/Form/FormPassed
diagram EAMSFilingResponse_p10.png
namespace http://www.dir.ca.gov/dwc/EAMS/PresentTermSolution/Schemas/Payloads/EAMSFilingResponse
type xs:boolean
properties
isRef 0
content simple
source <xs:element name="FormPassed" type="xs:boolean"/>

element EAMSFilingResponse/Summary/Transactions/Transaction/Forms/Form/FormShortName
diagram EAMSFilingResponse_p11.png
namespace http://www.dir.ca.gov/dwc/EAMS/PresentTermSolution/Schemas/Payloads/EAMSFilingResponse
type formShortName
properties
isRef 0
content simple
facets
Kind Value annotation
enumeration WCAB 1
enumeration 10214(a)
enumeration 10208.3
enumeration WCAB 6
enumeration 10208.2
enumeration 10214(c)
enumeration DE2581
enumeration UFO
enumeration 4903.05(c)
source <xs:element name="FormShortName" type="PF:formShortName"/>

element EAMSFilingResponse/Summary/Transactions/Transaction/Forms/Form/FormSequenceNumber
diagram EAMSFilingResponse_p12.png
namespace http://www.dir.ca.gov/dwc/EAMS/PresentTermSolution/Schemas/Payloads/EAMSFilingResponse
type formSequenceNumber
properties
isRef 0
content simple
facets
Kind Value annotation
minInclusive 1
maxInclusive 9999
source <xs:element name="FormSequenceNumber" type="PF:formSequenceNumber"/>

element EAMSFilingResponse/Summary/Transactions/Transaction/Forms/Form/FormMessage
diagram EAMSFilingResponse_p13.png
namespace http://www.dir.ca.gov/dwc/EAMS/PresentTermSolution/Schemas/Payloads/EAMSFilingResponse
type xs:string
properties
isRef 0
content simple
source <xs:element name="FormMessage" type="xs:string"/>

element EAMSFilingResponse/Summary/Transactions/Transaction/Forms/Form/FiledDate
diagram EAMSFilingResponse_p14.png
namespace http://www.dir.ca.gov/dwc/EAMS/PresentTermSolution/Schemas/Payloads/EAMSFilingResponse
type ptsDate
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
Kind Value annotation
pattern [0-1][0-9]/[0-3][0-9]/[1-2][0-9][0-9][0-9]
source <xs:element name="FiledDate" type="CF:ptsDate" minOccurs="0"/>

element EAMSFilingResponse/Summary/Transactions/Transaction/Forms/Form/CaseNumber
diagram EAMSFilingResponse_p15.png
namespace http://www.dir.ca.gov/dwc/EAMS/PresentTermSolution/Schemas/Payloads/EAMSFilingResponse
type caseNumber
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
Kind Value annotation
minLength 4
maxLength 20
pattern [A-Z][A-Z][A-Z]([0-9])*
source <xs:element name="CaseNumber" type="CF:caseNumber" minOccurs="0"/>

element EAMSFilingResponse/Summary/Transactions/Transaction/Forms/Form/ResubmissionID
diagram EAMSFilingResponse_p16.png
namespace http://www.dir.ca.gov/dwc/EAMS/PresentTermSolution/Schemas/Payloads/EAMSFilingResponse
type resubmissionID
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
Kind Value annotation
minLength 0
maxLength 9
source <xs:element name="ResubmissionID" type="PF:resubmissionID" minOccurs="0"/>

element EAMSFilingResponse/Summary/Transactions/Transaction/Forms/Form/ErrorList
diagram EAMSFilingResponse_p17.png
namespace http://www.dir.ca.gov/dwc/EAMS/PresentTermSolution/Schemas/Payloads/EAMSFilingResponse
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children Error
source <xs:element name="ErrorList" minOccurs="0">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="Error" type="PF:Error" minOccurs="0" maxOccurs="unbounded"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element EAMSFilingResponse/Summary/Transactions/Transaction/Forms/Form/ErrorList/Error
diagram EAMSFilingResponse_p18.png
namespace http://www.dir.ca.gov/dwc/EAMS/PresentTermSolution/Schemas/Payloads/EAMSFilingResponse
type Error
properties
isRef 0
minOcc 0
maxOcc unbounded
content complex
children ErrorCode ErrorPrimary ErrorSecondary
source <xs:element name="Error" type="PF:Error" minOccurs="0" maxOccurs="unbounded"/>

complexType HeaderSection
diagram EAMSFilingResponse_p19.png
namespace http://www.dir.ca.gov/dwc/EAMS/PresentTermSolution/Schemas/Payloads/EAMSFilingResponse
children VersionNumber ResponseType
used by
element EAMSFilingResponse/HeaderSection
source <xs:complexType name="HeaderSection">
  <xs:sequence>
    <xs:element name="VersionNumber" type="CF:versionNumber" fixed="1.5"/>
    <xs:element name="ResponseType" type="xs:string"/>
  </xs:sequence>
</xs:complexType>

element HeaderSection/VersionNumber
diagram EAMSFilingResponse_p20.png
namespace http://www.dir.ca.gov/dwc/EAMS/PresentTermSolution/Schemas/Payloads/EAMSFilingResponse
type versionNumber
properties
isRef 0
content simple
fixed 1.5
source <xs:element name="VersionNumber" type="CF:versionNumber" fixed="1.5"/>

element HeaderSection/ResponseType
diagram EAMSFilingResponse_p21.png
namespace http://www.dir.ca.gov/dwc/EAMS/PresentTermSolution/Schemas/Payloads/EAMSFilingResponse
type xs:string
properties
isRef 0
content simple
source <xs:element name="ResponseType" type="xs:string"/>

complexType Error
diagram EAMSFilingResponse_p22.png
namespace http://www.dir.ca.gov/dwc/EAMS/PresentTermSolution/Schemas/Common/PayloadFields
children ErrorCode ErrorPrimary ErrorSecondary
used by
element EAMSFilingResponse/Summary/Transactions/Transaction/Forms/Form/ErrorList/Error
source <xs:complexType name="Error">
  <xs:sequence>
    <xs:element name="ErrorCode">
      <xs:simpleType>
        <xs:restriction base="errorCode">
          <xs:minInclusive value="10000"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element name="ErrorPrimary" type="errorMessage"/>
    <xs:element name="ErrorSecondary" type="errorMessage"/>
  </xs:sequence>
</xs:complexType>

element Error/ErrorCode
diagram EAMSFilingResponse_p23.png
namespace http://www.dir.ca.gov/dwc/EAMS/PresentTermSolution/Schemas/Common/PayloadFields
type restriction of errorCode
properties
isRef 0
content simple
facets
Kind Value annotation
minInclusive 10000
maxInclusive 99999
source <xs:element name="ErrorCode">
  <xs:simpleType>
    <xs:restriction base="errorCode">
      <xs:minInclusive value="10000"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element Error/ErrorPrimary
diagram EAMSFilingResponse_p24.png
namespace http://www.dir.ca.gov/dwc/EAMS/PresentTermSolution/Schemas/Common/PayloadFields
type errorMessage
properties
isRef 0
content simple
facets
Kind Value annotation
minLength 1
maxLength 1056
whiteSpace preserve
source <xs:element name="ErrorPrimary" type="errorMessage"/>

element Error/ErrorSecondary
diagram EAMSFilingResponse_p25.png
namespace http://www.dir.ca.gov/dwc/EAMS/PresentTermSolution/Schemas/Common/PayloadFields
type errorMessage
properties
isRef 0
content simple
facets
Kind Value annotation
minLength 1
maxLength 1056
whiteSpace preserve
source <xs:element name="ErrorSecondary" type="errorMessage"/>

complexType VersionSection
diagram EAMSFilingResponse_p26.png
namespace http://www.dir.ca.gov/dwc/EAMS/PresentTermSolution/Schemas/Common/PayloadFields
children VersionNumber
source <xs:complexType name="VersionSection">
  <xs:sequence>
    <xs:element name="VersionNumber" type="xs:float"/>
  </xs:sequence>
</xs:complexType>

element VersionSection/VersionNumber
diagram EAMSFilingResponse_p27.png
namespace http://www.dir.ca.gov/dwc/EAMS/PresentTermSolution/Schemas/Common/PayloadFields
type xs:float
properties
isRef 0
content simple
source <xs:element name="VersionNumber" type="xs:float"/>

simpleType clientUserID
namespace http://www.dir.ca.gov/dwc/EAMS/PresentTermSolution/Schemas/Common/PayloadFields
type restriction of xs:string
properties
base xs:string
facets
Kind Value annotation
minLength 0
maxLength 40
annotation
documentation
Identifies the client submitting the forms.
source <xs:simpleType name="clientUserID">
  <xs:annotation>
    <xs:documentation>Identifies the client submitting the forms.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:maxLength value="40"/>
    <xs:minLength value="0"/>
  </xs:restriction>
</xs:simpleType>

simpleType dateSubmitted
namespace http://www.dir.ca.gov/dwc/EAMS/PresentTermSolution/Schemas/Common/PayloadFields
type xs:date
properties
base xs:date
annotation
documentation
Date the form(s) were sent to PTS
source <xs:simpleType name="dateSubmitted">
  <xs:annotation>
    <xs:documentation>Date the form(s) were sent to PTS</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:date"/>
</xs:simpleType>

simpleType environment
namespace http://www.dir.ca.gov/dwc/EAMS/PresentTermSolution/Schemas/Common/PayloadFields
type restriction of typeCode3
properties
base CF:typeCode3
facets
Kind Value annotation
length 3
whiteSpace collapse
enumeration DEV
enumeration TST
enumeration UAT
enumeration PRD
annotation
documentation
'DEV' - Development,  'TST - Test, 'UAT' - User Acceptance, 'PRD' - Production
source <xs:simpleType name="environment">
  <xs:annotation>
    <xs:documentation> 'DEV' - Development,  'TST - Test, 'UAT' - User Acceptance, 'PRD' - Production
</xs:documentation>
  </xs:annotation>
  <xs:restriction base="CF:typeCode3">
    <xs:enumeration value="DEV"/>
    <xs:enumeration value="TST"/>
    <xs:enumeration value="UAT"/>
    <xs:enumeration value="PRD"/>
  </xs:restriction>
</xs:simpleType>

simpleType errorCode
namespace http://www.dir.ca.gov/dwc/EAMS/PresentTermSolution/Schemas/Common/PayloadFields
type restriction of xs:positiveInteger
properties
base xs:positiveInteger
used by
element Error/ErrorCode
facets
Kind Value annotation
maxInclusive 99999
annotation
documentation
5 digit code indicating the error.
source <xs:simpleType name="errorCode">
  <xs:annotation>
    <xs:documentation>5 digit code indicating the error.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:positiveInteger">
    <xs:maxInclusive value="99999"/>
  </xs:restriction>
</xs:simpleType>

simpleType errorMessage
namespace http://www.dir.ca.gov/dwc/EAMS/PresentTermSolution/Schemas/Common/PayloadFields
type restriction of xs:string
properties
base xs:string
used by
elements Error/ErrorPrimary Error/ErrorSecondary
facets
Kind Value annotation
minLength 1
maxLength 1056
whiteSpace preserve
source <xs:simpleType name="errorMessage">
  <xs:restriction base="xs:string">
    <xs:maxLength value="1056"/>
    <xs:minLength value="1"/>
    <xs:whiteSpace value="preserve"/>
  </xs:restriction>
</xs:simpleType>

simpleType errorSeverity
namespace http://www.dir.ca.gov/dwc/EAMS/PresentTermSolution/Schemas/Common/PayloadFields
type restriction of typeCode1
properties
base CF:typeCode1
facets
Kind Value annotation
length 1
whiteSpace collapse
enumeration E
enumeration W
annotation
documentation
E - Error, W - Warning
source <xs:simpleType name="errorSeverity">
  <xs:annotation>
    <xs:documentation>E - Error, W - Warning</xs:documentation>
  </xs:annotation>
  <xs:restriction base="CF:typeCode1">
    <xs:enumeration value="E"/>
    <xs:enumeration value="W"/>
  </xs:restriction>
</xs:simpleType>

simpleType errorTimestamp
namespace http://www.dir.ca.gov/dwc/EAMS/PresentTermSolution/Schemas/Common/PayloadFields
type xs:dateTime
properties
base xs:dateTime
annotation
documentation
Date and Time the error occurred
source <xs:simpleType name="errorTimestamp">
  <xs:annotation>
    <xs:documentation>Date and Time the error occurred</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:dateTime"/>
</xs:simpleType>

simpleType formSequenceNumber
namespace http://www.dir.ca.gov/dwc/EAMS/PresentTermSolution/Schemas/Common/PayloadFields
type restriction of xs:positiveInteger
properties
base xs:positiveInteger
used by
element EAMSFilingResponse/Summary/Transactions/Transaction/Forms/Form/FormSequenceNumber
facets
Kind Value annotation
minInclusive 1
maxInclusive 9999
source <xs:simpleType name="formSequenceNumber">
  <xs:restriction base="xs:positiveInteger">
    <xs:minInclusive value="1"/>
    <xs:maxInclusive value="9999"/>
  </xs:restriction>
</xs:simpleType>

simpleType formShortName
namespace http://www.dir.ca.gov/dwc/EAMS/PresentTermSolution/Schemas/Common/PayloadFields
type restriction of xs:string
properties
base xs:string
used by
element EAMSFilingResponse/Summary/Transactions/Transaction/Forms/Form/FormShortName
facets
Kind Value annotation
enumeration WCAB 1
enumeration 10214(a)
enumeration 10208.3
enumeration WCAB 6
enumeration 10208.2
enumeration 10214(c)
enumeration DE2581
enumeration UFO
enumeration 4903.05(c)
annotation
documentation
Unique form  ID
source <xs:simpleType name="formShortName">
  <xs:annotation>
    <xs:documentation>Unique form  ID</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="WCAB 1"/>
    <xs:enumeration value="10214(a)"/>
    <xs:enumeration value="10208.3"/>
    <xs:enumeration value="WCAB 6"/>
    <xs:enumeration value="10208.2"/>
    <xs:enumeration value="10214(c)"/>
    <xs:enumeration value="DE2581"/>
    <xs:enumeration value="UFO"/>
    <xs:enumeration value="4903.05(c)"/>
    <!-- start CR458 July 30th, 2015 form number changed  -->
    <!--  xs:enumeration value="10252.1"/ -->
    <!--  end CR458 July 30th, 2015 form number changed -->
    <!-- START - Prakash Sankar - CR623 (WC Reform) - introduce the provider declaration form -->
    <!-- END - Prakash Sankar - CR623 (WC Reform) - introduce the provider declaration form -->
  </xs:restriction>
</xs:simpleType>

simpleType ipAddress
namespace http://www.dir.ca.gov/dwc/EAMS/PresentTermSolution/Schemas/Common/PayloadFields
type restriction of xs:string
properties
base xs:string
facets
Kind Value annotation
maxLength 80
annotation
documentation
IP Address of the sender
source <xs:simpleType name="ipAddress">
  <xs:annotation>
    <xs:documentation>IP Address of the sender</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:maxLength value="80"/>
  </xs:restriction>
</xs:simpleType>

simpleType logicalSystem
namespace http://www.dir.ca.gov/dwc/EAMS/PresentTermSolution/Schemas/Common/PayloadFields
type restriction of xs:string
properties
base xs:string
facets
Kind Value annotation
minLength 1
maxLength 255
enumeration EAMS
annotation
documentation
Submitters System - company system name
source <xs:simpleType name="logicalSystem">
  <xs:annotation>
    <xs:documentation>Submitters System - company system name</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:maxLength value="255"/>
    <xs:minLength value="1"/>
    <xs:enumeration value="EAMS"/>
  </xs:restriction>
</xs:simpleType>

simpleType message
namespace http://www.dir.ca.gov/dwc/EAMS/PresentTermSolution/Schemas/Common/PayloadFields
type restriction of xs:string
properties
base xs:string
facets
Kind Value annotation
minLength 0
maxLength 255
annotation
documentation
Mandatory EAMS response message.
source <xs:simpleType name="message">
  <xs:annotation>
    <xs:documentation>Mandatory EAMS response message.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:maxLength value="255"/>
    <xs:minLength value="0"/>
  </xs:restriction>
</xs:simpleType>

simpleType module
namespace http://www.dir.ca.gov/dwc/EAMS/PresentTermSolution/Schemas/Common/PayloadFields
type restriction of xs:string
properties
base xs:string
facets
Kind Value annotation
maxLength 20
annotation
documentation
Submitter, Poller, Validator, EAMS Batch
source <xs:simpleType name="module">
  <xs:annotation>
    <xs:documentation>Submitter, Poller, Validator, EAMS Batch</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:maxLength value="20"/>
  </xs:restriction>
</xs:simpleType>

simpleType packetID
namespace http://www.dir.ca.gov/dwc/EAMS/PresentTermSolution/Schemas/Common/PayloadFields
type restriction of xs:string
properties
base xs:string
facets
Kind Value annotation
maxLength 255
annotation
documentation
Convention:  XXXX-DATE-YYYY XXXX-SubmitterCode Date-Date(YYYYMMDD) YYYY-RunningSequenceNumber (1..9999)
source <xs:simpleType name="packetID">
  <xs:annotation>
    <xs:documentation>Convention:  XXXX-DATE-YYYY XXXX-SubmitterCode Date-Date(YYYYMMDD) YYYY-RunningSequenceNumber (1..9999)</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:maxLength value="255"/>
  </xs:restriction>
</xs:simpleType>

simpleType packetType
namespace http://www.dir.ca.gov/dwc/EAMS/PresentTermSolution/Schemas/Common/PayloadFields
type restriction of typeCode3
properties
base CF:typeCode3
facets
Kind Value annotation
length 3
whiteSpace collapse
enumeration REQ
enumeration REP
enumeration ERR
annotation
documentation
REQ- Request, REP- Reply, ERR - Error
source <xs:simpleType name="packetType">
  <xs:annotation>
    <xs:documentation>REQ- Request, REP- Reply, ERR - Error</xs:documentation>
  </xs:annotation>
  <xs:restriction base="CF:typeCode3">
    <xs:enumeration value="REQ"/>
    <xs:enumeration value="REP"/>
    <xs:enumeration value="ERR"/>
  </xs:restriction>
</xs:simpleType>

simpleType payloadFormat
namespace http://www.dir.ca.gov/dwc/EAMS/PresentTermSolution/Schemas/Common/PayloadFields
type restriction of typeCode3
properties
base CF:typeCode3
facets
Kind Value annotation
length 3
whiteSpace collapse
enumeration XML
annotation
documentation
XML
source <xs:simpleType name="payloadFormat">
  <xs:annotation>
    <xs:documentation>XML</xs:documentation>
  </xs:annotation>
  <xs:restriction base="CF:typeCode3">
    <xs:enumeration value="XML"/>
  </xs:restriction>
</xs:simpleType>

simpleType payloadSchema
namespace http://www.dir.ca.gov/dwc/EAMS/PresentTermSolution/Schemas/Common/PayloadFields
type restriction of xs:string
properties
base xs:string
facets
Kind Value annotation
minLength 0
maxLength 40
annotation
documentation
the published schema
source <xs:simpleType name="payloadSchema">
  <xs:annotation>
    <xs:documentation>the published schema</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:maxLength value="40"/>
    <xs:minLength value="0"/>
  </xs:restriction>
</xs:simpleType>

simpleType resolutionAdvice
namespace http://www.dir.ca.gov/dwc/EAMS/PresentTermSolution/Schemas/Common/PayloadFields
type restriction of xs:string
properties
base xs:string
facets
Kind Value annotation
maxLength 255
whiteSpace collapse
source <xs:simpleType name="resolutionAdvice">
  <xs:restriction base="xs:string">
    <xs:maxLength value="255"/>
    <xs:whiteSpace value="collapse"/>
  </xs:restriction>
</xs:simpleType>

simpleType resubmissionID
namespace http://www.dir.ca.gov/dwc/EAMS/PresentTermSolution/Schemas/Common/PayloadFields
type restriction of xs:string
properties
base xs:string
used by
element EAMSFilingResponse/Summary/Transactions/Transaction/Forms/Form/ResubmissionID
facets
Kind Value annotation
minLength 0
maxLength 9
annotation
documentation
Resubmission ID Number
source <xs:simpleType name="resubmissionID">
  <xs:annotation>
    <xs:documentation>Resubmission ID Number</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:maxLength value="9"/>
    <xs:minLength value="0"/>
  </xs:restriction>
</xs:simpleType>

simpleType resubmissionIND
namespace http://www.dir.ca.gov/dwc/EAMS/PresentTermSolution/Schemas/Common/PayloadFields
type checkBox
properties
base CF:checkBox
facets
Kind Value annotation
whiteSpace collapse
annotation
documentation
Defaults to 'false'
source <xs:simpleType name="resubmissionIND">
  <xs:annotation>
    <xs:documentation>Defaults to 'false'</xs:documentation>
  </xs:annotation>
  <xs:restriction base="CF:checkBox"/>
</xs:simpleType>

simpleType securityToken
namespace http://www.dir.ca.gov/dwc/EAMS/PresentTermSolution/Schemas/Common/PayloadFields
type restriction of xs:string
properties
base xs:string
facets
Kind Value annotation
minLength 0
maxLength 255
source <xs:simpleType name="securityToken">
  <xs:restriction base="xs:string">
    <xs:maxLength value="255"/>
    <xs:minLength value="0"/>
  </xs:restriction>
</xs:simpleType>

simpleType serviceNameCode
namespace http://www.dir.ca.gov/dwc/EAMS/PresentTermSolution/Schemas/Common/PayloadFields
type restriction of typeCode3
properties
base CF:typeCode3
facets
Kind Value annotation
length 3
whiteSpace collapse
enumeration IN1
enumeration OU1
enumeration OU2
enumeration OU3
annotation
documentation

IN1 -SubmitFormsToEAMS,
OU1 -EAMSFilingResponse,
OU2 - EAMSPacketReceiveResponse,
OU3- EAMSPacketValidationResponse
source <xs:simpleType name="serviceNameCode">
  <xs:annotation>
    <xs:documentation>
IN1 -SubmitFormsToEAMS,
OU1 -EAMSFilingResponse,
OU2 - EAMSPacketReceiveResponse,
OU3- EAMSPacketValidationResponse
</xs:documentation>
  </xs:annotation>
  <xs:restriction base="CF:typeCode3">
    <xs:enumeration value="IN1"/>
    <xs:enumeration value="OU1"/>
    <xs:enumeration value="OU2"/>
    <xs:enumeration value="OU3"/>
  </xs:restriction>
</xs:simpleType>

simpleType serviceVersion
namespace http://www.dir.ca.gov/dwc/EAMS/PresentTermSolution/Schemas/Common/PayloadFields
type restriction of xs:string
properties
base xs:string
facets
Kind Value annotation
minLength 1
maxLength 5
annotation
documentation
PTS Version Number
source <xs:simpleType name="serviceVersion">
  <xs:annotation>
    <xs:documentation>PTS Version Number</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:maxLength value="5"/>
    <xs:minLength value="1"/>
  </xs:restriction>
</xs:simpleType>

simpleType testMessgeIND
namespace http://www.dir.ca.gov/dwc/EAMS/PresentTermSolution/Schemas/Common/PayloadFields
type checkBox
properties
base CF:checkBox
facets
Kind Value annotation
whiteSpace collapse
annotation
documentation
true if the message is a test message
source <xs:simpleType name="testMessgeIND">
  <xs:annotation>
    <xs:documentation>true if the message is a test message</xs:documentation>
  </xs:annotation>
  <xs:restriction base="CF:checkBox"/>
</xs:simpleType>

simpleType transactionID
namespace http://www.dir.ca.gov/dwc/EAMS/PresentTermSolution/Schemas/Common/PayloadFields
type restriction of xs:string
properties
base xs:string
used by
element EAMSFilingResponse/Summary/Transactions/Transaction/TransactionID
facets
Kind Value annotation
minLength 1
maxLength 256
whiteSpace collapse
annotation
documentation
Convention:  XXXX-DATE-YYYY-ZZZZZ XXXX-SubmitterCode Date-Date(YYYYMMDD)  YYYY-RunningSequenceNumber (1..9999)
ZZZZZ- RunningSequenceNumber (1...99999)
source <xs:simpleType name="transactionID">
  <xs:annotation>
    <xs:documentation>Convention:  XXXX-DATE-YYYY-ZZZZZ XXXX-SubmitterCode Date-Date(YYYYMMDD)  YYYY-RunningSequenceNumber (1..9999)
ZZZZZ- RunningSequenceNumber (1...99999)
</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:maxLength value="256"/>
    <xs:whiteSpace value="collapse"/>
    <xs:minLength value="1"/>
  </xs:restriction>
</xs:simpleType>

simpleType transportProtocol
namespace http://www.dir.ca.gov/dwc/EAMS/PresentTermSolution/Schemas/Common/PayloadFields
type restriction of xs:string
properties
base xs:string
facets
Kind Value annotation
maxLength 40
annotation
documentation
SFTP
source <xs:simpleType name="transportProtocol">
  <xs:annotation>
    <xs:documentation>SFTP</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:maxLength value="40"/>
  </xs:restriction>
</xs:simpleType>

simpleType caseNumber
namespace http://www.dir.ca.gov/dwc/EAMS/PresentTermSolution/Schemas/Common/CommonFields
type restriction of xs:string
properties
base xs:string
used by
element EAMSFilingResponse/Summary/Transactions/Transaction/Forms/Form/CaseNumber
facets
Kind Value annotation
minLength 4
maxLength 20
pattern [A-Z][A-Z][A-Z]([0-9])*
source <xs:simpleType name="caseNumber">
  <xs:restriction base="xs:string">
    <xs:maxLength value="20"/>
    <xs:minLength value="4"/>
    <xs:pattern value="[A-Z][A-Z][A-Z]([0-9])*"/>
  </xs:restriction>
</xs:simpleType>

simpleType checkBox
namespace http://www.dir.ca.gov/dwc/EAMS/PresentTermSolution/Schemas/Common/CommonFields
type restriction of xs:boolean
properties
base xs:boolean
used by
simpleTypes resubmissionIND testMessgeIND
facets
Kind Value annotation
whiteSpace collapse
source <xs:simpleType name="checkBox">
  <xs:restriction base="xs:boolean">
    <xs:whiteSpace value="collapse"/>
  </xs:restriction>
</xs:simpleType>

simpleType ptsDate
namespace http://www.dir.ca.gov/dwc/EAMS/PresentTermSolution/Schemas/Common/CommonFields
type restriction of xs:string
properties
base xs:string
used by
elements EAMSFilingResponse/Summary/Transactions/Transaction/DateSubmitted EAMSFilingResponse/Summary/Transactions/Transaction/Forms/Form/FiledDate
facets
Kind Value annotation
pattern [0-1][0-9]/[0-3][0-9]/[1-2][0-9][0-9][0-9]
source <xs:simpleType name="ptsDate">
  <xs:restriction base="xs:string">
    <xs:pattern value="[0-1][0-9]/[0-3][0-9]/[1-2][0-9][0-9][0-9]"/>
  </xs:restriction>
</xs:simpleType>

simpleType typeCode1
namespace http://www.dir.ca.gov/dwc/EAMS/PresentTermSolution/Schemas/Common/CommonFields
type restriction of xs:string
properties
base xs:string
used by
simpleType errorSeverity
facets
Kind Value annotation
length 1
whiteSpace collapse
source <xs:simpleType name="typeCode1">
  <xs:restriction base="xs:string">
    <xs:length value="1" fixed="true"/>
    <xs:whiteSpace value="collapse"/>
  </xs:restriction>
</xs:simpleType>

simpleType typeCode3
namespace http://www.dir.ca.gov/dwc/EAMS/PresentTermSolution/Schemas/Common/CommonFields
type restriction of xs:string
properties
base xs:string
used by
simpleTypes environment packetType payloadFormat serviceNameCode
facets
Kind Value annotation
length 3
whiteSpace collapse
source <xs:simpleType name="typeCode3">
  <xs:restriction base="xs:string">
    <xs:length value="3" fixed="true"/>
    <xs:whiteSpace value="collapse"/>
  </xs:restriction>
</xs:simpleType>

simpleType versionNumber
namespace http://www.dir.ca.gov/dwc/EAMS/PresentTermSolution/Schemas/Common/CommonFields
type xs:float
properties
base xs:float
used by
element HeaderSection/VersionNumber
annotation
documentation
PTS Version Number
source <xs:simpleType name="versionNumber">
  <xs:annotation>
    <xs:documentation>PTS Version Number</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:float"/>
</xs:simpleType>


XML Schema documentation generated by XMLSpy Schema Editor http://www.altova.com/xmlspy
